Log Cabin Bases: Getting the Foundations Right

A log cabin needs firm, level support prior to the first wall logs go into place. If the base settles unevenly, the walls can lose their alignment, doors may catch, and the floor can move. Getting the base work right is much easier than fixing it once the cabin is finished.

I’m Robin Antill, founder of 1st Choice Leisure Buildings. I’ve worked with garden buildings since 1979. My advice is to choose your log cabin first, get its foundation plan, and give it to whoever will build the base.

Concrete, paving and a properly designed timber frame can all be suitable. The right choice depends on the cabin, what you intend to put inside it and the ground beneath it.

Garden room base plan showing level support, correct footprint, access and drainage around the building.

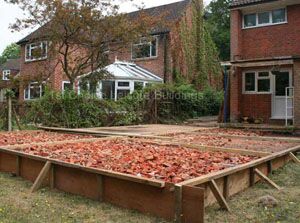

Why the Base Matters for a Log Cabin

An interlocking log cabin is built by stacking wall timbers. Those walls need support where the manufacturer’s plan shows it, including any internal load-bearing walls. Supporting the floor alone is not enough.

The foundation beams and floor bearers may have different jobs. Foundation beams commonly support the first wall logs, while floor bearers carry the floor. Check the arrangement for your particular cabin rather than assuming you can place any timber wherever it’s convenient.

A suitable base should:

  • Carry the cabin, its floor and the contents you intend to use.
  • Provide level support beneath the specified walls and bearers.
  • Remain stable under the expected loads.
  • Keep vulnerable timber clear of soil and standing water.
  • Allow the specified damp-proofing, drainage and underfloor ventilation.

A sound base helps protect the cabin from damp conditions, but it does not make the whole building damp-proof or prevent condensation by itself. Roof drainage, timber treatment, ventilation and how the cabin is used still matter.

Start with the Correct Base Dimensions

A cabin advertised as 3m × 3m does not necessarily need a base measuring exactly 3m × 3m. The quoted size may include projecting log ends, while the roof extends further again.

Ask for the manufacturer’s foundation drawing. It should identify the support footprint, wall positions and any requirements for foundation beams or floor bearers. Different beam profiles can also affect the required base dimensions.

Do not make the slab larger simply to be safe. An exposed concrete ledge can catch rainwater and let it collect beside the lower timbers unless the edge and drainage details address it.

Mark out the roof overhangs and guttering as well as the base. Leave the access needed for assembly, treatment and future maintenance. Check the finished height too: a raised foundation affects the cabin’s overall height and may require steps or a different threshold arrangement.

Check the Site Before Starting Work

Measure the fall across the proposed cabin position and look at what happens after heavy rain. A garden that looks dry in summer may hold water through winter.

Soft ground, recently filled areas, nearby trees, retaining walls and old foundations can affect the work. A firm-looking surface does not tell you what is underneath. Ask for an assessment where the conditions are uncertain.

Locate underground services before excavating or driving support posts. Keep drains and inspection chambers accessible, and agree on any electrical duct routes before the base is finished.

Do not dig close to an existing wall or building without considering its foundations. Even relatively shallow excavation is capable of undermining some garden walls.

Which Base Should You Choose?

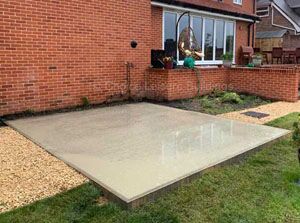

Concrete Slab

A concrete slab can provide continuous support beneath the cabin walls and floor arrangement. It needs a proper foundation, accurate dimensions, and a level finish.

Slab thickness, concrete specification, reinforcement and sub-base depth must suit the project. No single excavation depth works for every cabin and soil type.

Remove unsuitable material and prepare the ground to the agreed specification. Where a compacted aggregate sub-base is required, place and compact it in suitable layers. Loose topsoil or tipped garden soil is not a reliable way to build up a bearing surface.

Agree on the damp-proof membrane and foundation-beam details before pouring. Ordinary concrete is not waterproof, and weed-control fabric does not replace a damp-proof membrane.

The surface supporting the cabin must be level. Arrange drainage around it rather than putting a fall beneath the building.

Protect the concrete during curing and confirm when it can carry the cabin. A surface that feels hard enough to walk on may still be unsuitable for loading. Follow the concrete supplier’s and installer’s advice rather than working to a fixed waiting period copied from another project.

Simplified concrete base drawing showing the garden room floor and bearers, level slab and prepared ground.

Paving Slab Base

Paving can work where the cabin supplier accepts it, and the construction beneath it suits the loads. Check an existing patio before you place a cabin on it.

Look for rocking slabs, settlement and areas that have been repeatedly repaired. A patio’s drainage fall can also make it unsuitable for supporting the cabin directly.

Agree the slab strength, sub-base and bedding with the installer. Where the design requires continuous bedding, isolated mortar spots or scraps used as packing are unsuitable substitutes.

Filling the joints will not strengthen a weak foundation. If the slabs have moved, find out why before covering them with a building.

Paving base section showing level slabs, suitable continuous bedding and compacted sub-base.

Timber Subframe

A timber subframe can provide a level platform above the ground. It may be useful on a site with a modest slope or where bringing in large quantities of concrete is difficult.

The frame must support the cabin’s wall lines as well as its floor. A layout suitable for a lightweight shed should not automatically be used beneath an interlocking log cabin.

Timber grade, preservative treatment, spans, support positions, fixings and bracing all need to suit the design. The posts or foundations beneath the frame must also suit the ground.

Keep vulnerable timber clear of soil and preserve the required airflow beneath the cabin. Don’t assume a lighter foundation solves a problem with soft or unstable ground.

Timber subframe showing perimeter framing, cross members, a full-width aligned row of noggins and illustrative supports.

Heavy-Duty Subframe: Larger Loads or More Demanding Sites

The heavy-duty option is considered for larger or heavier buildings, substantial contents or a site with more than a minor slope.

Our guide describes 70mm × 70mm recycled plastic posts, connected to the frame with M10 × 130mm coach bolts and set in 40N concrete. It also specifies diagonal bracing where a post projects 40mm or more above ground.

These are the published service details, not permission to use the same arrangement on every slope. The installer must confirm the design, foundations, height and bracing for your building.

For help choosing between these systems, see our base-building services. Ask which contractor will do the work and agree on the specifications and responsibilities before booking.

Heavy-duty timber subframe showing a level frame close to the ground, supporting posts and site-specific foundations; bracing omitted for clarity.

Timber Overbase on Existing Concrete or Paving

An overbase is a level timber frame installed above a suitable existing hard base. It may solve situations where sound concrete or paving has a fall or cannot support the cabin directly in its current form.

The old base still needs to be stable. A timber frame cannot repair subsidence or make loose paving reliable. Its support arrangement must transfer the cabin’s loads safely to the base below.

Water must also be able to drain away beneath and around the frame without remaining against the timber.

Foundation Beams and Damp Protection

Follow the cabin manufacturer’s instructions for the foundation beams, damp-proof course and floor construction. These details vary between buildings.

Where specified, the foundation beam separates the first wall log from the base. Its position and any shaped drainage edge need to be correct. Do not reverse a profiled beam or seal a drainage route simply because the joint looks neater that way.

Agree how the damp-proof membrane connects with the floor and wall-support details. Adding loose plastic afterwards can trap water if it is arranged badly.

If the floor will be insulated, decide on the complete floor build-up before construction. Insulation, membranes, bearers and finished floor height need to work together.

A Sensible Order for the Work

  1. Choose the cabin. Obtain its foundation plan and installation requirements.
  2. Explain the intended use. Tell the supplier about heavy storage, gym equipment or other substantial loads.
  3. Assess the ground. Check slope, drainage, trees, nearby structures and buried services.
  4. Agree the base design. Confirm dimensions, wall support, floor support, finished levels and damp-proofing.
  5. Prepare the site. Remove unsuitable material and construct the specified foundations.
  6. Check as work proceeds. Measure levels, diagonals and support positions before mistakes become difficult to correct.
  7. Check readiness for installation. Check curing, access and the completed base with the cabin installer.

Do not leave loose ground to settle and assume time will make it suitable. Ground preparation and compaction need an agreed method appropriate to the materials and site.

Wet cement can cause serious skin and eye injuries. Cutting concrete or paving can also produce harmful dust. Use suitable equipment and controls, and get competent help where the work is beyond your experience.

Keep Rainwater Away from the Lower Logs

Decide on drainage before the cabin arrives. Gutters and downpipes should discharge to a suitable destination, not beside the foundation.

The surrounding ground should direct water away safely without sending it towards the house or a neighbouring property. A raised frame won’t prevent regular flooding, and aggregate beneath concrete doesn’t automatically drain.

Keep soil, mulch and planting away from the lower logs. Later landscaping should not bridge damp-proof details or block the ventilation beneath the floor.

For moisture inside the building, see our guide to understanding and reducing log cabin condensation.

Who Should Build the Base?

If you have suitable construction experience, you may be able to carry out the work yourself. The key is whether you can follow the foundation design, assess the site, and achieve the required support and levels.

Ask a prospective contractor to work from the cabin’s actual plan. Agree who is responsible for ground preparation, waste removal, drainage, access and checking the finished base.

Photographs taken before the work is covered can be useful. Keep the agreed specification and any changes with your cabin paperwork.

We can discuss the requirements for your chosen cabin and explain our base-building service options. Confirm who will carry out the work and what is included before arranging installation.

Looking After the Base

Check the visible supports, drainage and surrounding ground periodically, particularly after prolonged wet weather. Clear leaves from gutters and keep vegetation away from lower timber.

Investigate new floor movement, changes in level, persistent wet patches or doors that begin catching. Timber movement and door adjustment can have other causes, so these signs do not prove that the foundation has failed.

Concrete Cracks

Record cracks and ask for advice if they grow, develop a difference in level, admit water or appear alongside movement in the cabin. Crack width alone is not a reliable test of the base’s condition.

Filler may be appropriate for some repairs, but it will not stop settlement beneath the slab. Establish the cause before choosing a repair.

Moving or Broken Paving

Moving slabs may indicate inadequate bedding, washed-out material or ground movement. Repairing the jointing alone will not address those problems.

Do not lift or remove a slab supporting an assembled cabin without a safe temporary support arrangement. Access beneath a loaded building needs planning.

Timber Supports

Look for softened timber, loose connections and posts that have moved. Surface splits can occur as timber dries, but sanding a split doesn’t confirm whether a load-bearing member is safe.

Do not unscrew a supporting beam or jack up the cabin without a suitable support plan. Contact the installer if you suspect deterioration or movement.

My Advice Before Booking the Groundworks

Get the cabin plan, site measurements and expected use together first. Give the installer photographs, details of any slope and an honest account of drainage problems.

For a log cabin, pay particular attention to the wall support. The foundation needs to suit the interlocking structure above it, not simply provide somewhere to lay the floor.

We can help you establish the base requirements for your chosen log cabin. Agree on those details before the groundworks start and before fixing the cabin’s installation date.

Robin Antill
Founder, 1st Choice Leisure Buildings
Working with garden buildings since 1979

Reviewed: 26 October 2026. Foundation details must follow the cabin manufacturer’s requirements and suit the ground conditions.
