WALLS
Sturdy 75mm x 38mm (70mm x 34mm finished) pressure treated framing which is diagonally braced and screwed together before being lined with a white/grey vapour proof lining and clad externally with your choice of:
• 19mm (15mm finished) pressure treated T&G Shiplap
• 22mm (20mm finished) pressure treated T&G Loglap
• 23mm – 6mm pressure treated Weatherboard
FLOOR
19mm (15mm finished) pressure treated T&G on 47mm x 47mm (45mm x 45mm finished) pressure treated joists which are spaced every 0.3m (12”). Option to upgrade to 22mm (20mm finished) pressure treated T&G if required.
ROOF

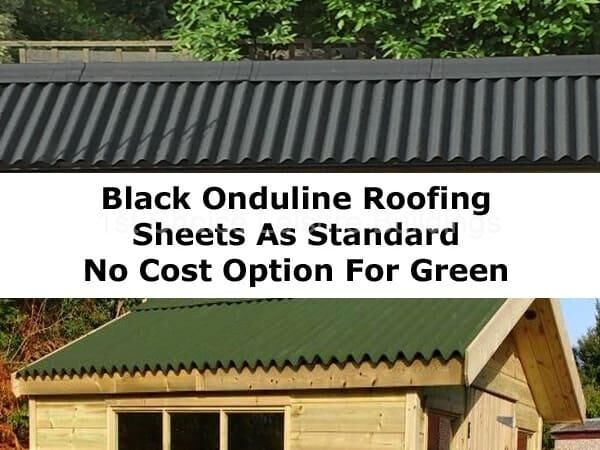

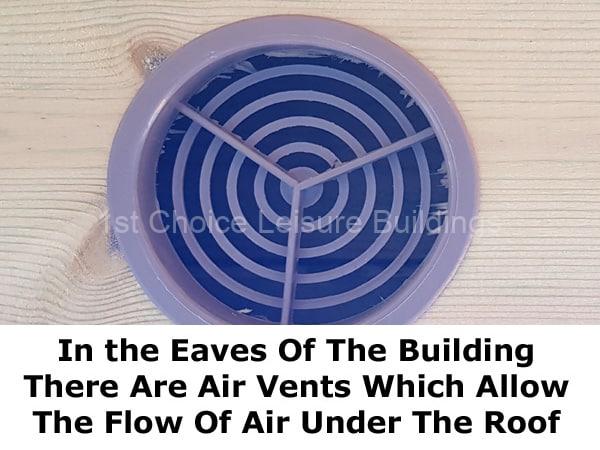

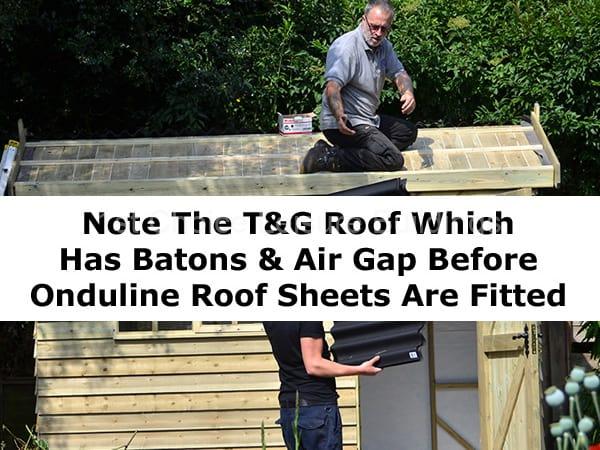

Maintenance free Onduline sheeting on 16mm (12mm finished) T&G match boarding with roof purlins and rafters supported as necessary on sturdy roof trusses and beams. The roof incorporates a unique soffit venting system which ensures good airflow within the roof space.
HEIGHTS
There is a generous internal eaves height of 1.94m (6’ 4”)raising to an internal ridge height of:
• 1.8m (6’) apex = 2.16m (7’ 1”)
• 2.4m (8’) apex = 2.24m (7’ 4”)
• 3.0m (10’) 10’ apex = 2.24m (7’ 4”)
• 3.6m (12’) apex = 2.24m (7’ 4”)
All external roof heights comply with the 2.5m maximum height restriction imposed when erecting a building under Permitted Development.
DOOR
A single 0.76m (2’ 6”) wide x 1.78m (5’ 10”) high heavy duty Framed, Ledged and Braced door – set in a solid frame with a traditional drip-cill – hung on black butt hinges and fitted with a mortice lock and a black antique door handle.
WINDOWS
Each building is fitted with a pair of four-pane Georgian style windows – one of which will open – in the front of the building. Toughened glass is standard but double glazing is available as an optional extra. Additionally you are able to add extra windows or move the existing for a small additional cost.
FEATURES
• Pressure treated floor, cladding and framing
for long life
• Doors and windows configured to suit

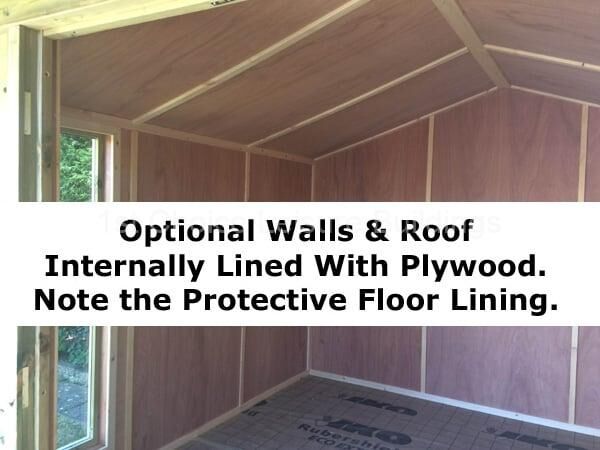

• Optional lining and insulation
• Option for exterior to be painted in a lacquer
or coloured stain
• Free on-site installation in most areas
• Optional integral log store available
All specifications are subject to change.
All sizes are nominal. E&OE.

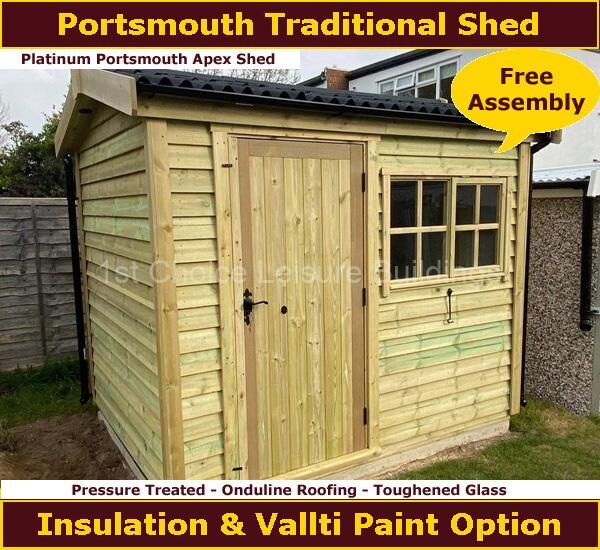

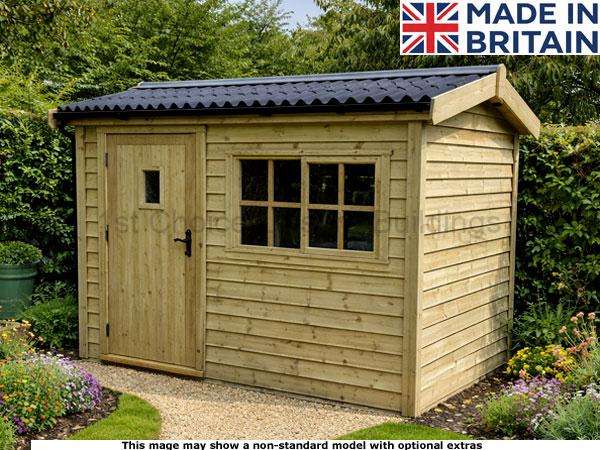

Our exclusive Platinum range of buildings has always been hand-crafted using traditional tried and trusted designs and construction methods but, taking it’s visual cues from the past, the exquisite Platinum Portsmouth Traditional Apex Workshop is something that we are particularly proud to offer.
The many customers who have already taken delivery of one of these buildings also talk about how they are proud to own one. There must be something to it!
Constructed using a choice of three different top quality redwood claddings – the traditional style Weatherboard cladding being the most popular – this building boasts traditional style corrugated bitumen roof sheets, Georgian windows and ornate back door furniture with mortice lock.
Inspired by ages gone by, the Platinum Portsmouth Traditional Apex Workshop will evoke memories of your Grandfather’s shed at the bottom of his garden. If you are really looking to relive a memory we can even supply a range of good quality wood stains in a wide palette of traditional colours which you can apply to re-create almost any childhood memory
Our grandparents knew the meaning of something being made ‘right’ and took great delight in owning a traditional shed they could be proud of with these types of qualities. The Portsmouth building would be one they would enthuse about and would reflect the very high standards they would expect.
This meant no cheap OSB boards. These Portsmouth buildings are unbeatable for value. Check out the high spec on these buildings and you will be amazed.
They may seem more expensive than the ‘cheap and cheerful’ buildings available elsewhere but they are NEVER made down to a price. Don’t settle for second best.

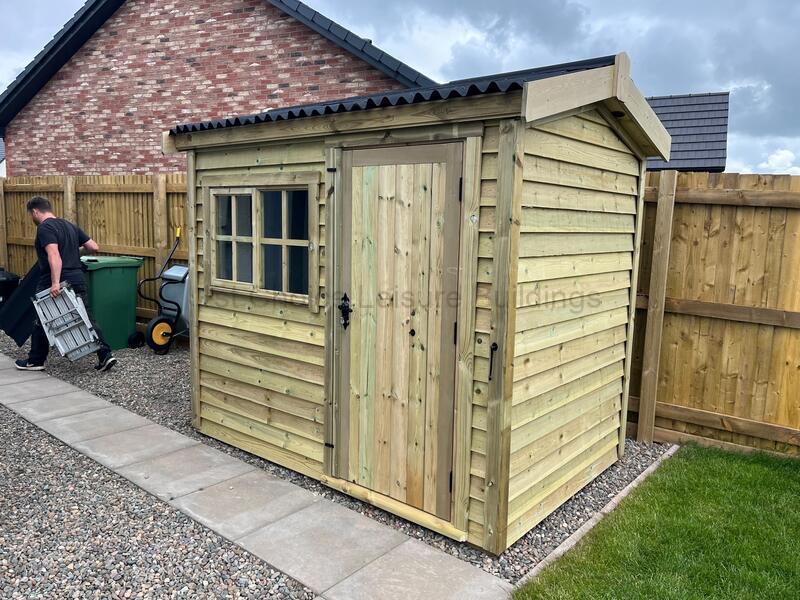

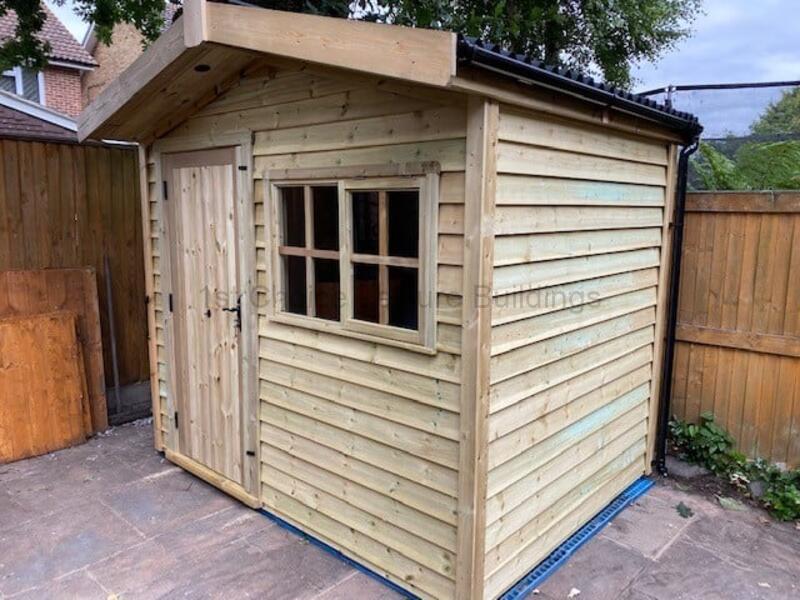

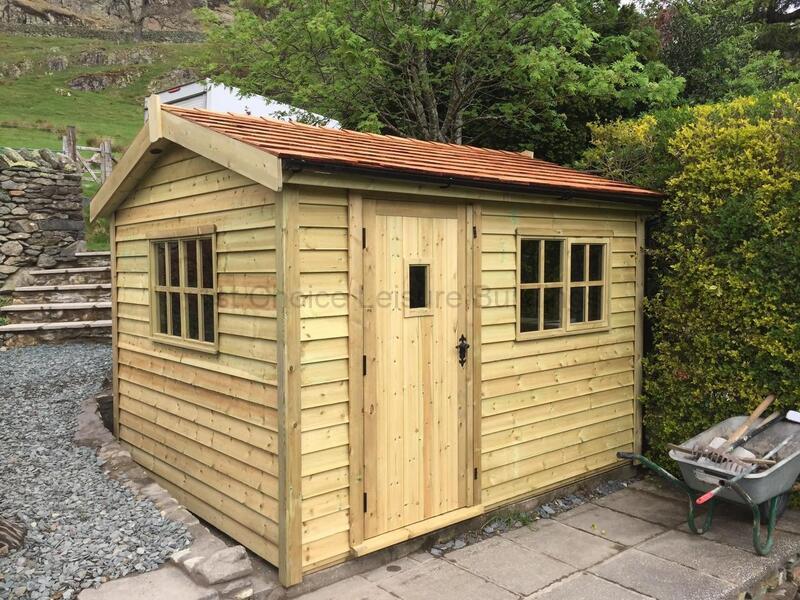

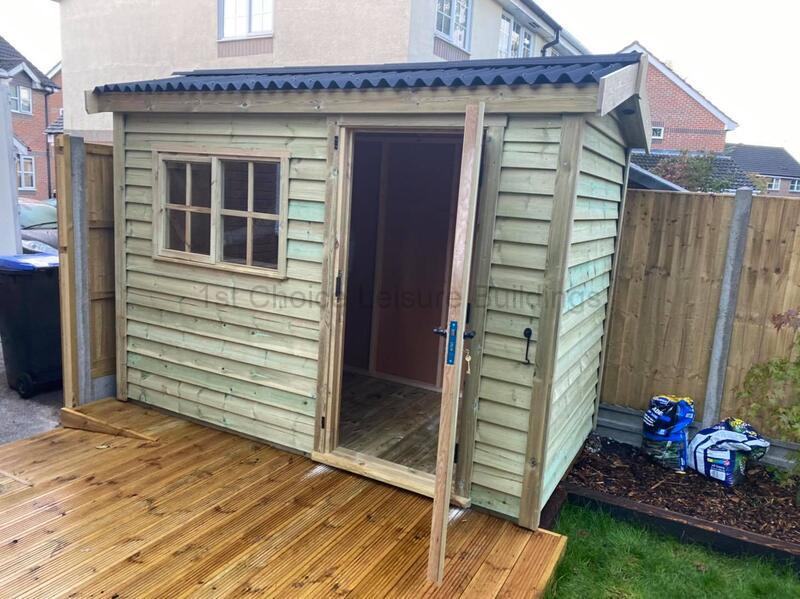

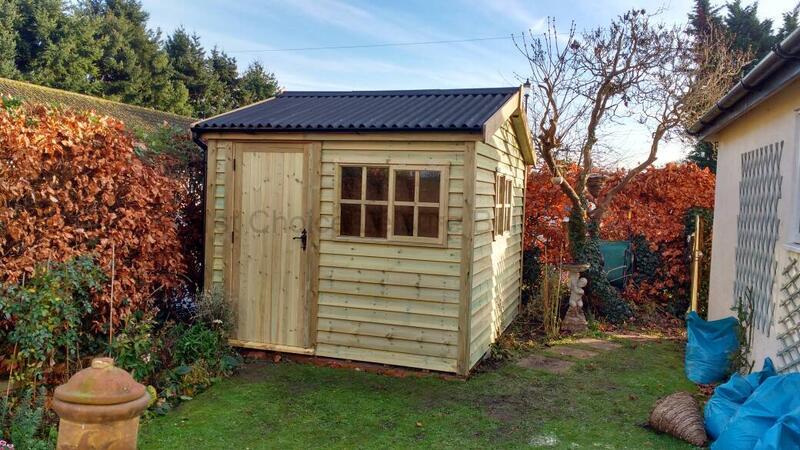

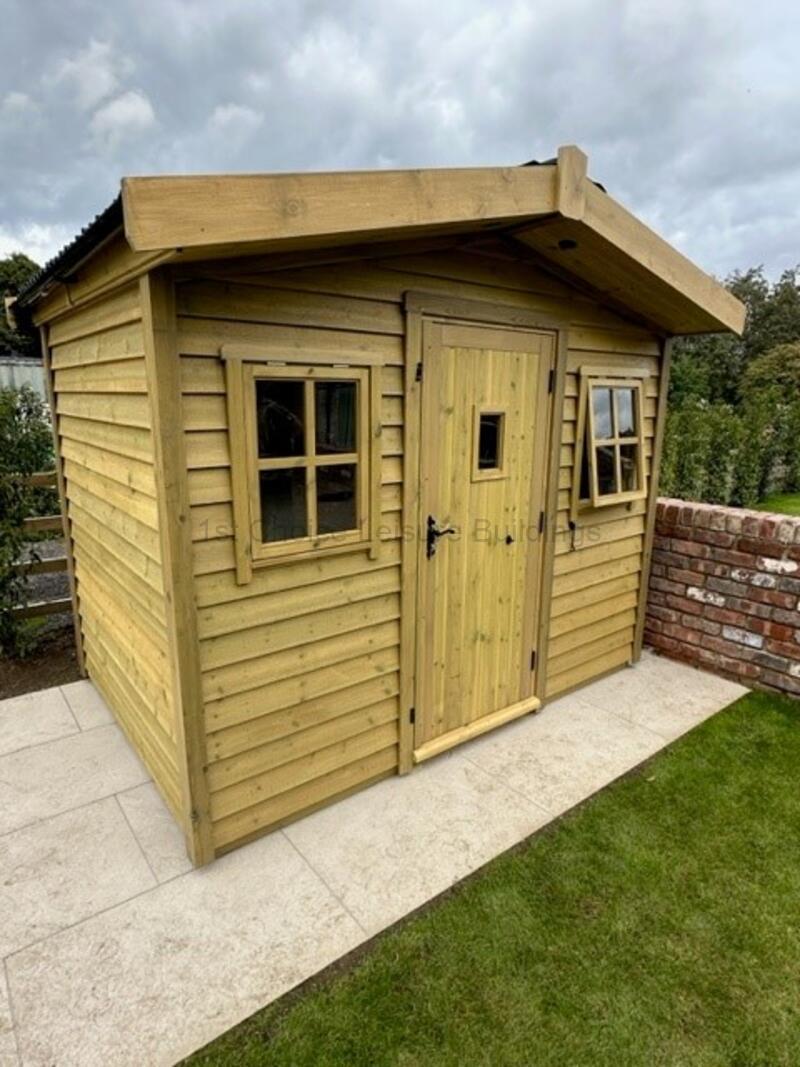

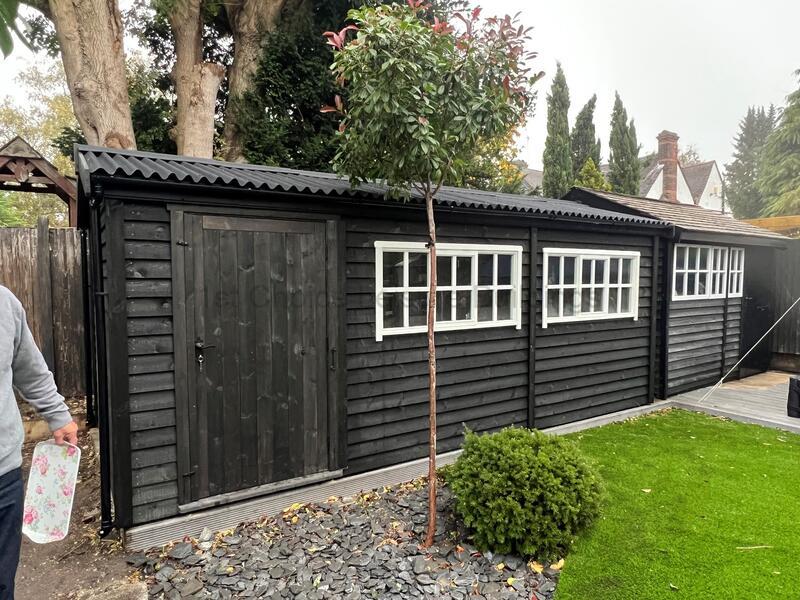

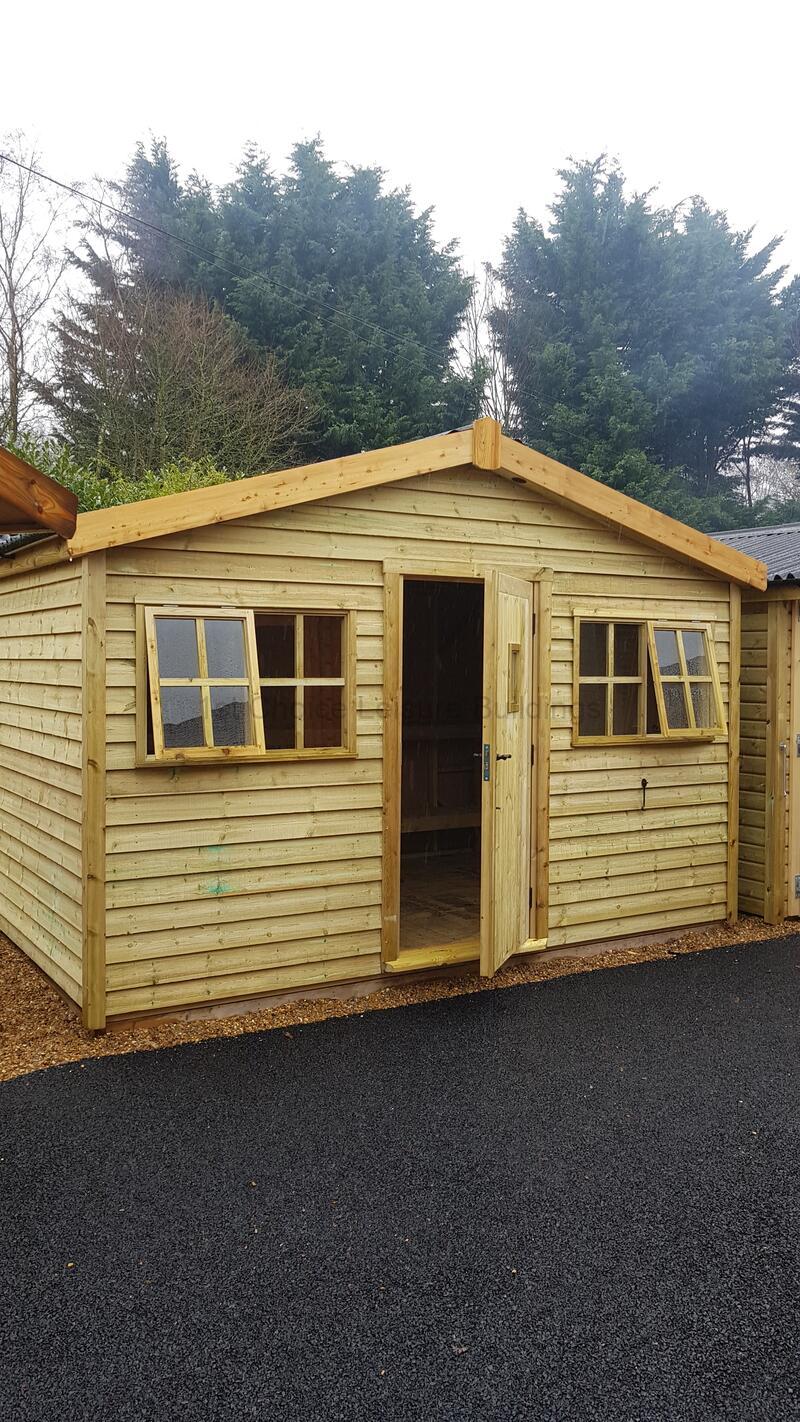

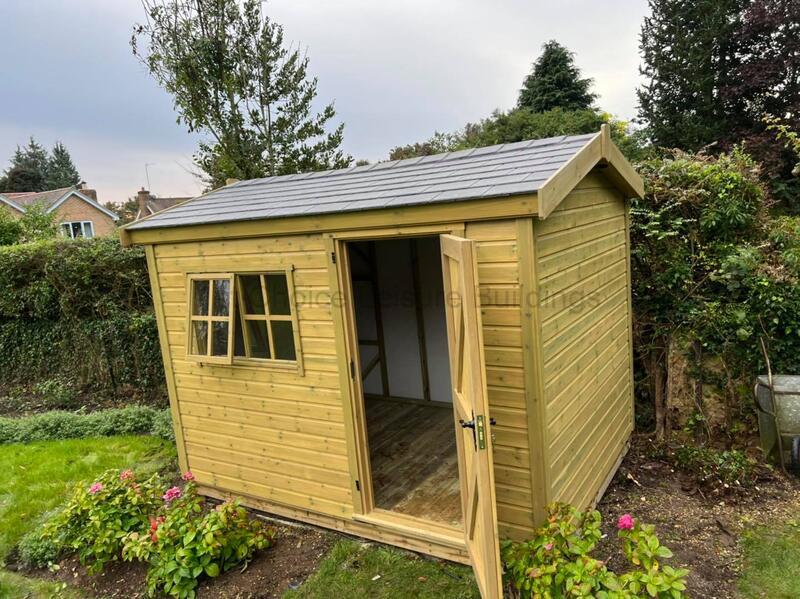

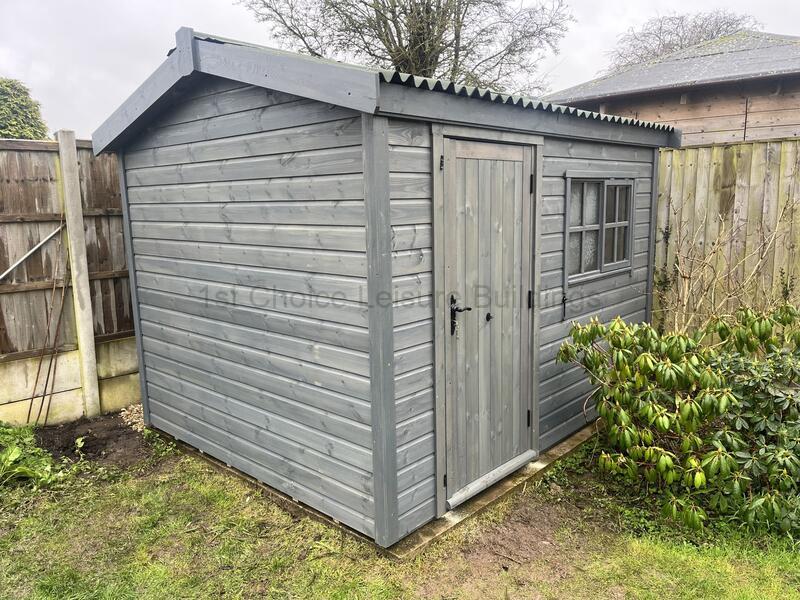

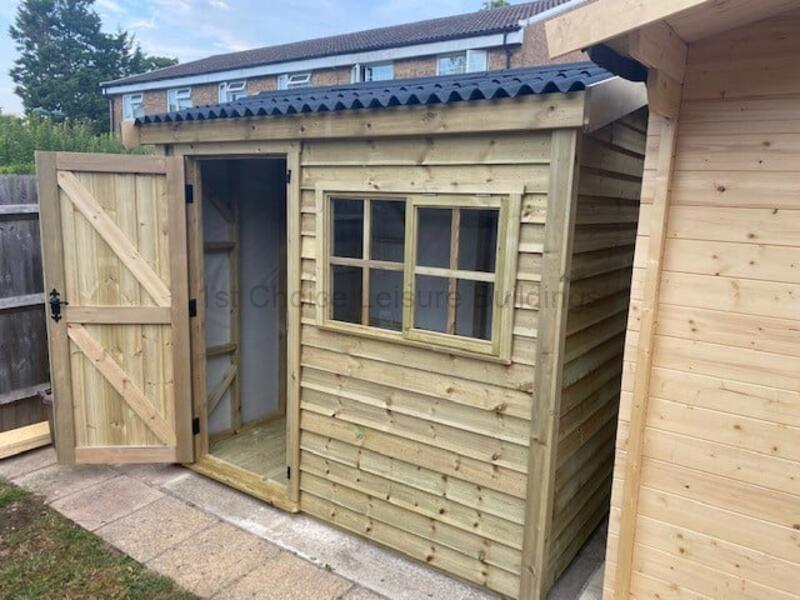

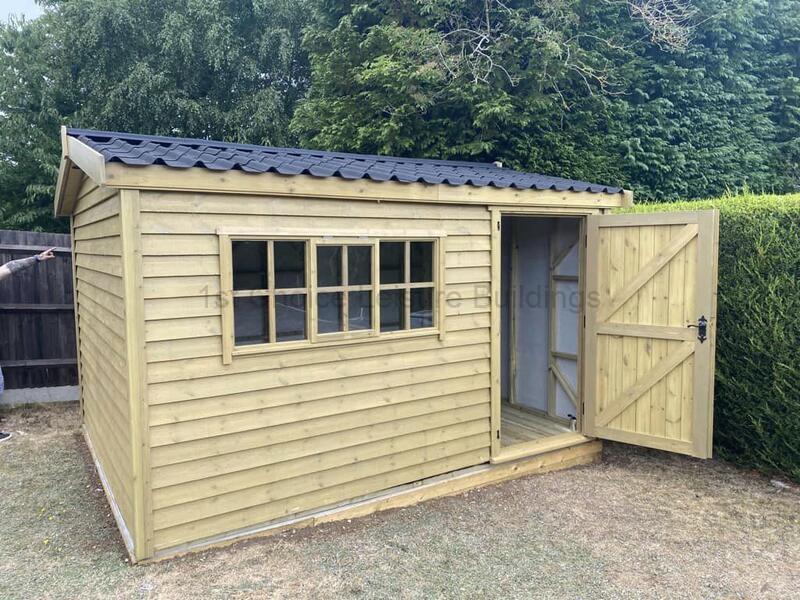

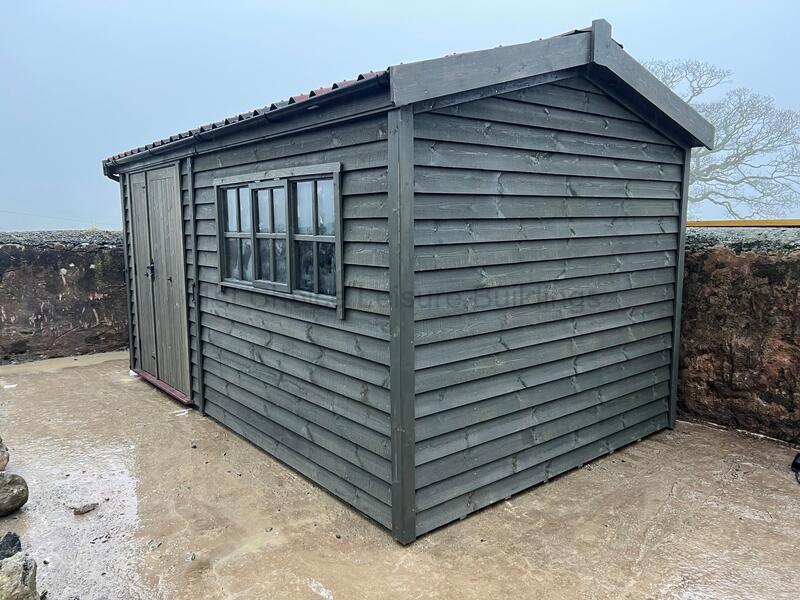

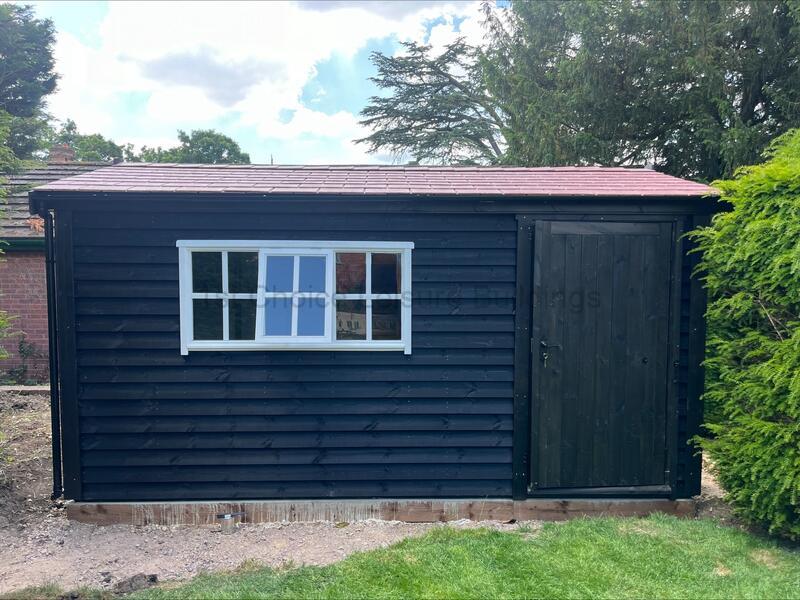

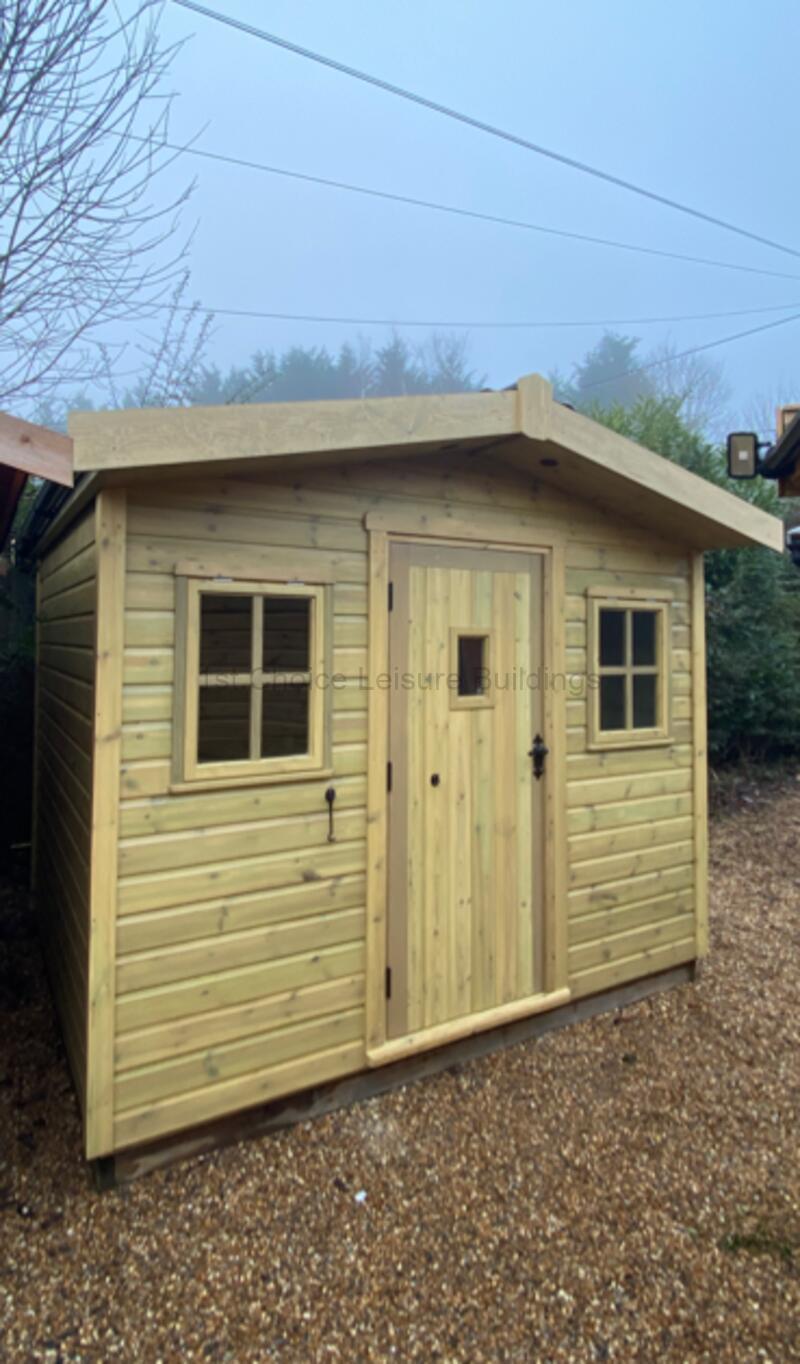

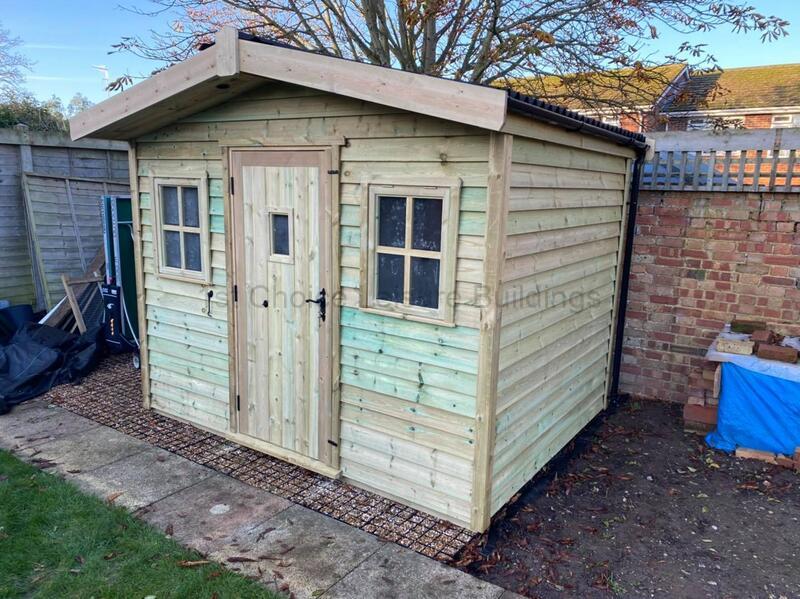

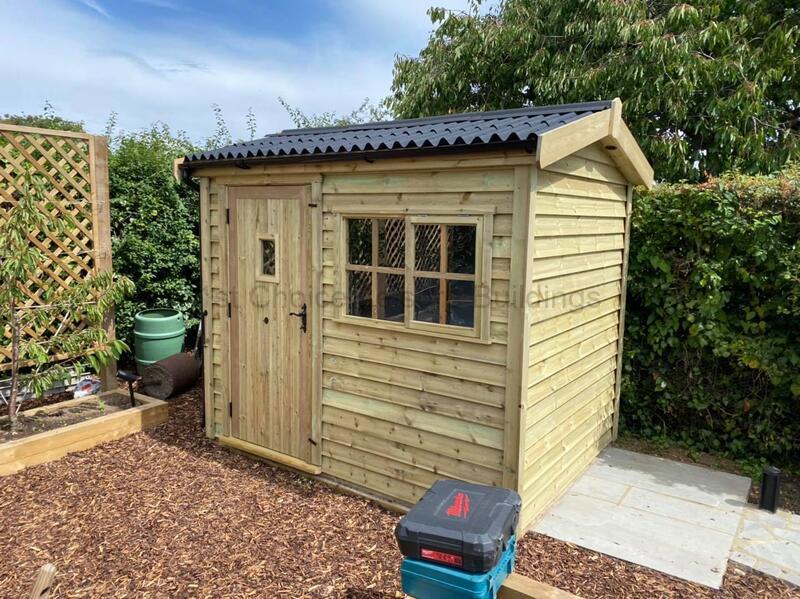

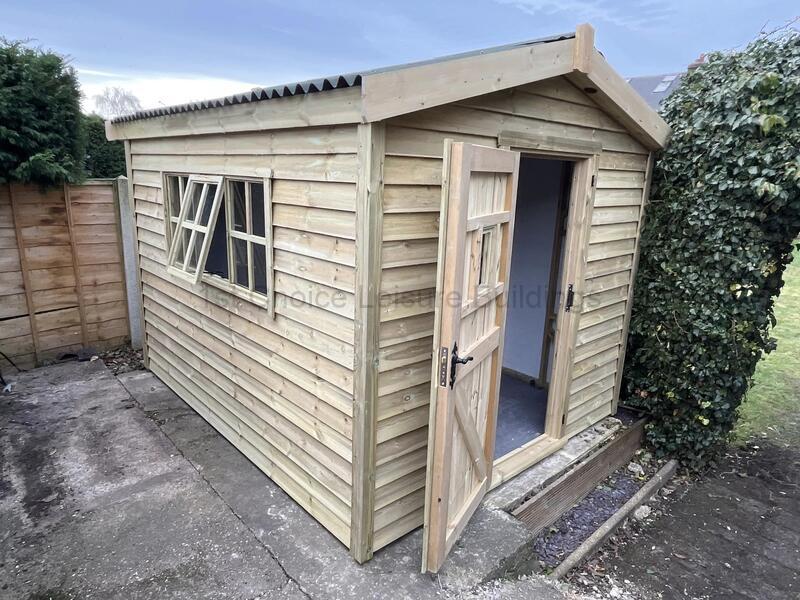

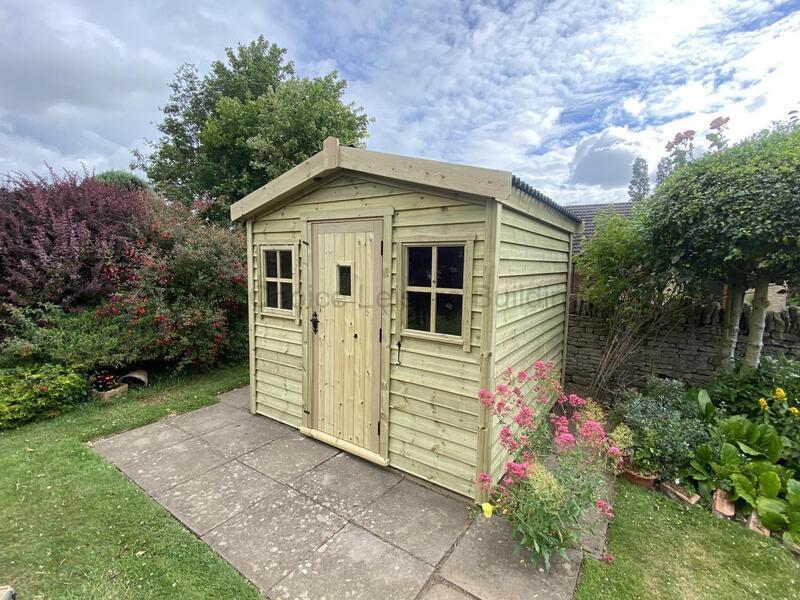

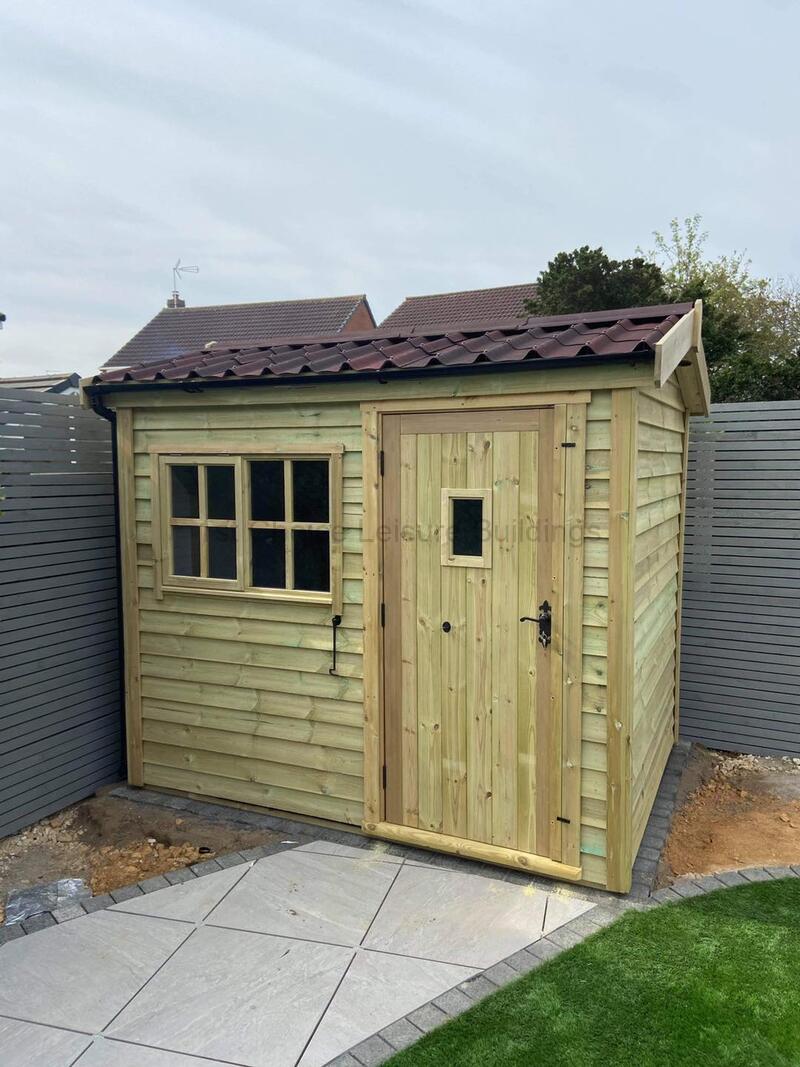

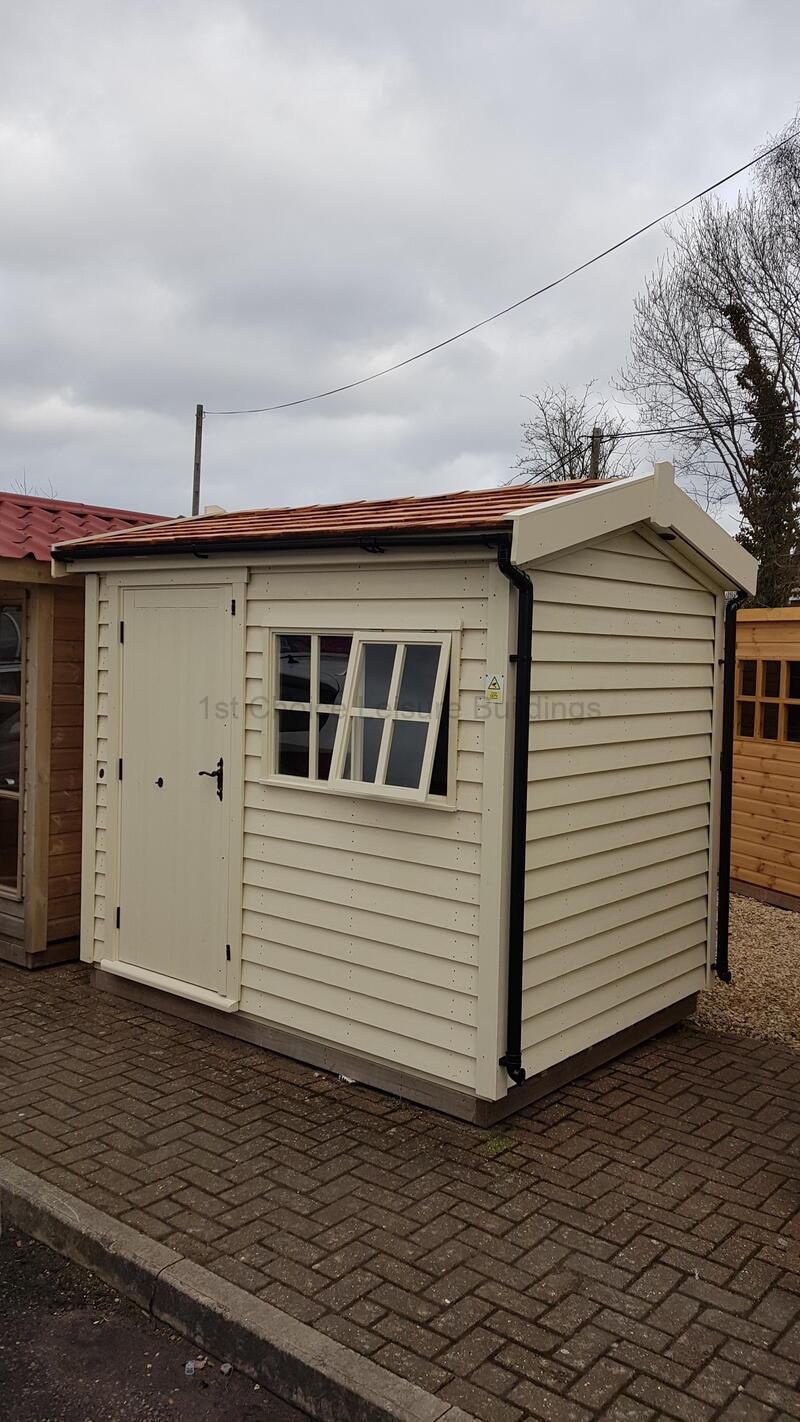

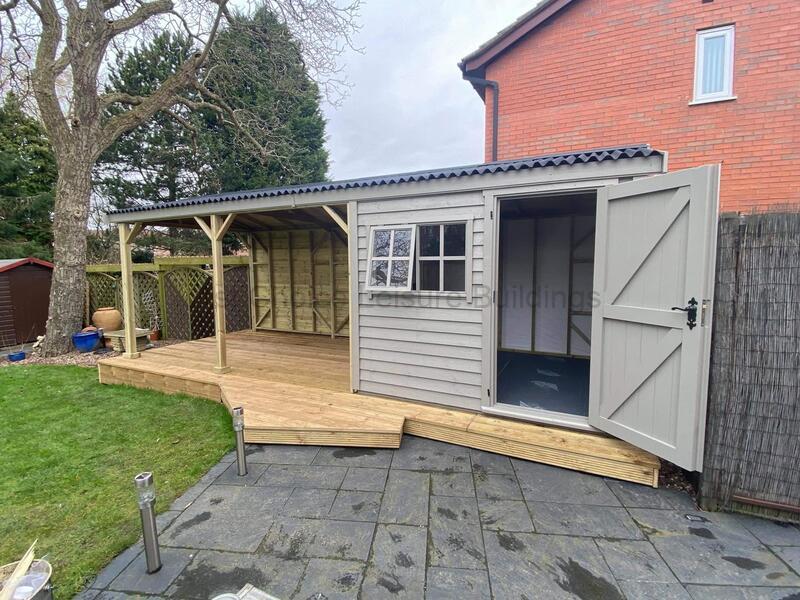

These images show just a few examples of these superb Platinum Portsmouth Traditional workshops. All can be made bespoke in size and design to suit your needs. Insulation & paint colour treatment options. Toughened glass and assembled free of charge as standard. These buildings are so good you should really visit our showrooms and see them in ‘real life’. You won’t regret it.
Take a look in our photo galley to see many more images of these buildings as well as the options available and some of the bespoke buildings made.

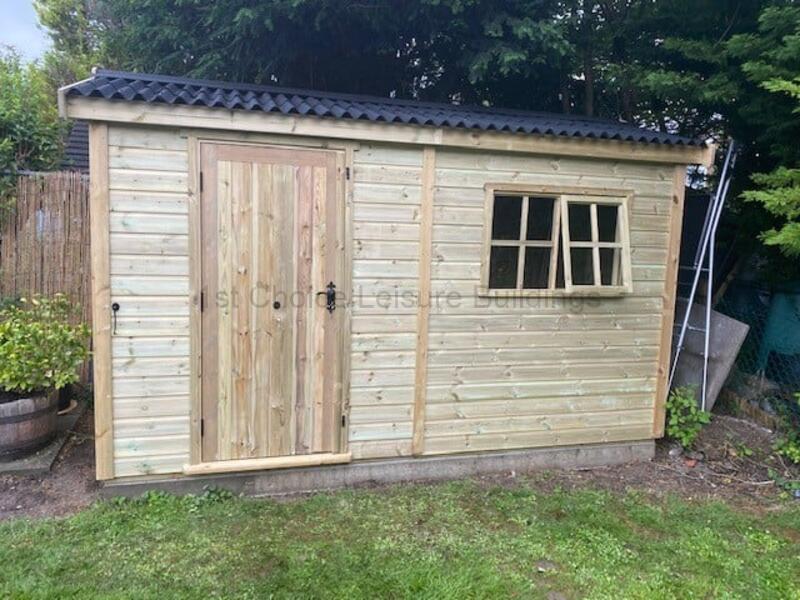

This PAG traditional shed has the door and windows on the LOW side of the building with the door set to the RIGHT and the windows to the LEFT, also on the LOW side, as you look at it from outside. Nothing on the APEX ends. Bear in mind that as the door and windows are on the LOW side then the door may be lower than standard.
This PAH traditional shed has the door and windows on the LOW side of the building with the door set to the LEFT and the windows to the RIGHT, also on the LOW side, as you look at it from outside. Nothing on the APEX ends. Bear in mind that as the door and windows are on the LOW side then the door may be lower than standard.
This PAI Model has an APEX roof and with the door on the APEX end of the building. As you go in the door the windows will be on the LEFT hand side of the unit. The number of windows varies with the size of the building.
This PAJ Model has an APEX roof and with the door on the APEX end of the building. As you go in the door the windows will be on the RIGHT hand side of the unit. The number of windows varies with the size of the building.
Provided the garden shed you would like is square or rectangular then it can be made to suit you. Door and windows in different positions – no problem – no windows – no problem – extra doors or windows – security windows just say the word.

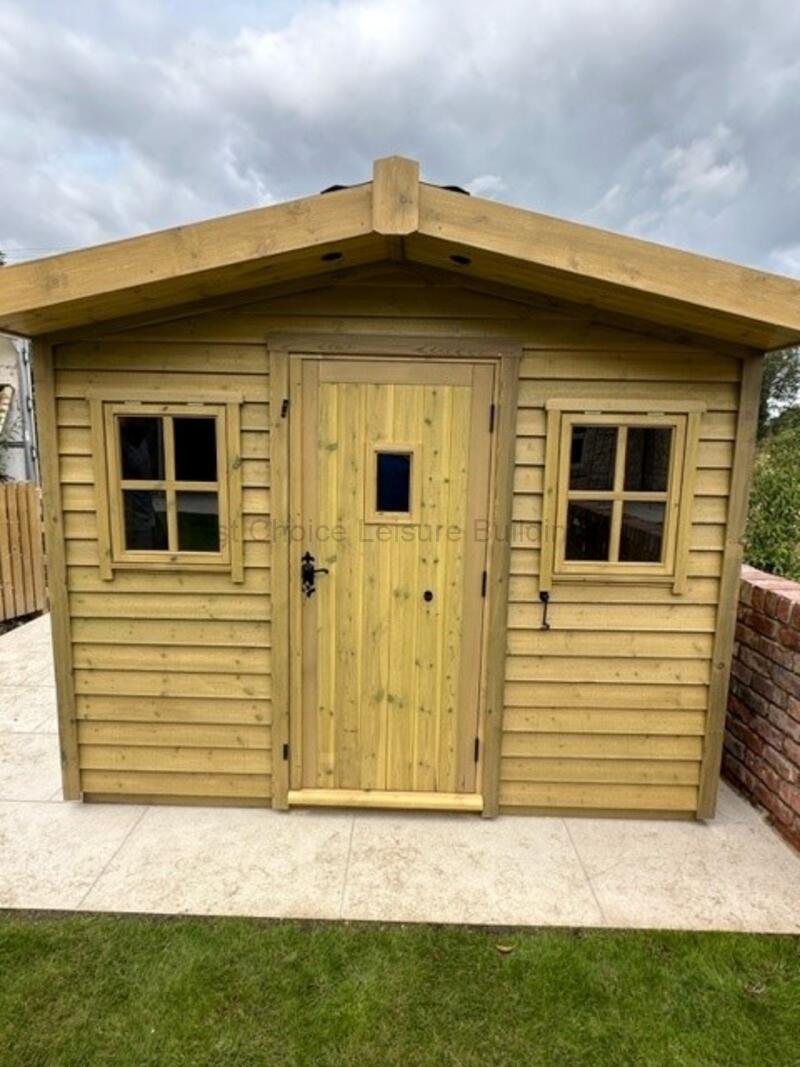

This PA Transverse Apex Model has an APEX roof and with the door on the WIDE APEX end of the building. The windows will be either side of the door The number of windows varies with the size of the building.

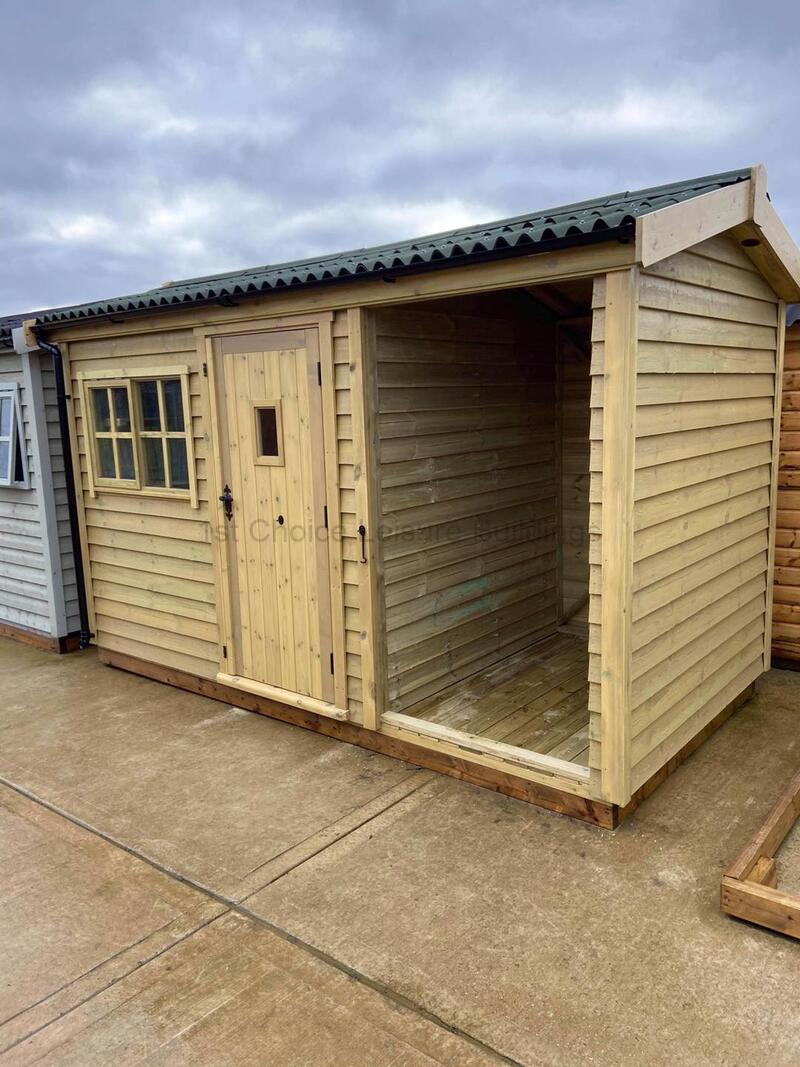

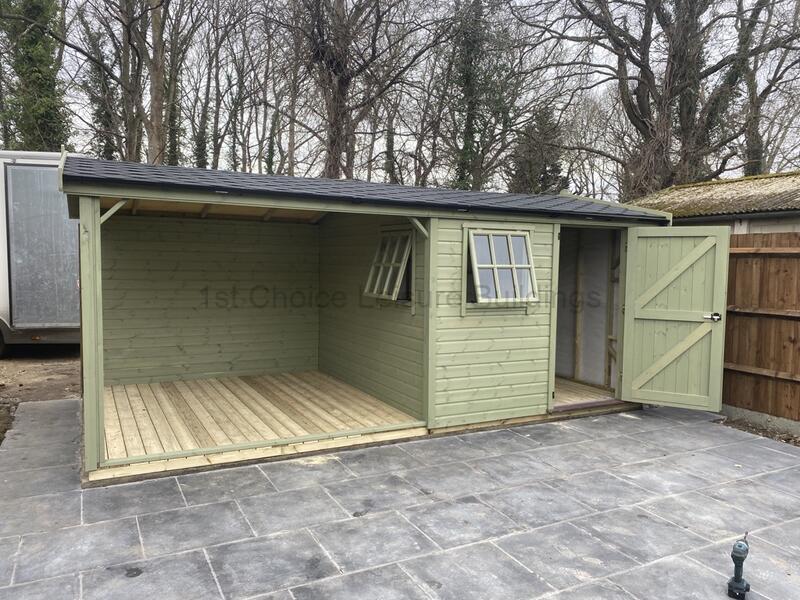

This PAG traditional shed has the door and windows on the LOW side of the building with the door set to the RIGHT and the windows to the LEFT, also on the LOW side, as you look at it from outside. Nothing on the APEX ends. Log store in different widths on end.
This PAH traditional shed has the door and windows on the LOW side of the building with the door set to the RIGHT and the windows to the LEFT, also on the LOW side, as you look at it from outside. Nothing on the APEX ends. Log store in different widths on end.
