WALLS
Sturdy 75mm x 38mm (70mm x 34mm finished) pressure treated framing which is diagonally braced and screwed together before being lined with a white/grey vapour proof lining and clad externally with your choice of:
• 19mm (15mm finished) pressure treated T&G Shiplap
• 22mm (20mm finished) pressure treated T&G Loglap
• 23mm – 6mm pressure treated Weatherboard
FLOOR
19mm (15mm finished) pressure treated T&G on 47mm x 47mm pressure treated joists. Option to upgrade to 22mm (20mm finished) pressure treated T&G if required.
ROOF
Maintenance free Onduline sheeting on 16mm (12mm finished) T&G match boarding with roof purlins and rafters supported as necessary on sturdy roof trusses and beams. The roof incorporates a unique soffit venting system which ensures good airflow within the roof space.
HEIGHTS
On apex models there is a generous internal eaves height of 1.94m (6’ 4”) raising to an internal ridge height of:
• 1.8m (6’) apex = 2.16m (7’ 1”)
• 2.4m (8’) apex = 2.24m (7’ 4”)
• 3.0m (10’) apex = 2.24m (7’ 4”)
• 3.6m (12’) apex = 2.24m (7’ 4”)
On pent models the eaves height 1.91m (6’ 3”) raising to 2.16m (7’ 1”) at the high point.
All external roof heights (up to 3.6m span) comply with the 2.5m maximum height restriction imposed when erecting a building under Permitted Development.
DOORS
A pair of 1.2m (4’) wide x 1.78m (5’ 10”) high Georgian joinery-made doors are set in a solid frame with a traditional drip-cill. They are hung on black butt hinges and fitted with a mortice lock, black antique door handles and matching cabin hooks. For a small extra cost you can switch these doors for a 1.5m (5’) wide x 1.78m (5’ 10”) version and/or doors with more glass within.
WINDOWS
Three top-hung 9 pane Georgian opening windows are included as standard and can be positioned to suit whilst additional windows can be added for a small extra charge. Each window is 1.04m (3’ 5”) high x 0.68m (2’ 3”) wide and is fitted with toughened glass as standard. There is an option to upgrade to double glazed units.
FEATURES
• Pressure treated floor, cladding and framing for long life
• Doors and windows configured to suit
• Optional lining and insulation
• Option for exterior to be painted in a lacquer or coloured stain
• Free on-site installation in most areas
• Choice of Apex or Pent roof styles. All specifications are subject to change.
All sizes are nominal. E&OE
The garden is no longer referred to simply as ‘outside’. It is now an integral part of the living space; a place for you to relax and unwind or, increasingly, a place for you to work in a peaceful and tranquil environment.
The Platinum Winchester Bespoke Garden Studio fulfils all of the requirements of modern contemporary living; a practical and useful space with a stylish yet traditional appearance.
The sturdy frame and maintenance free Onduline roof covering ensure a long-life for your building whilst your choice of three different cladding finishes and free-range with the positioning of the Georgian doors and windows ensure a building which fulfils your requirements: a fully bespoke building at an ‘off the peg’ price.
These buildings are some of the best available. So before choosing a new one for your garden you need to check out the specifications beforehand. In particular, the type of timber it is made from, whether any OSB board is used, and the general build quality. Check the competition out against the spec on our buildings.

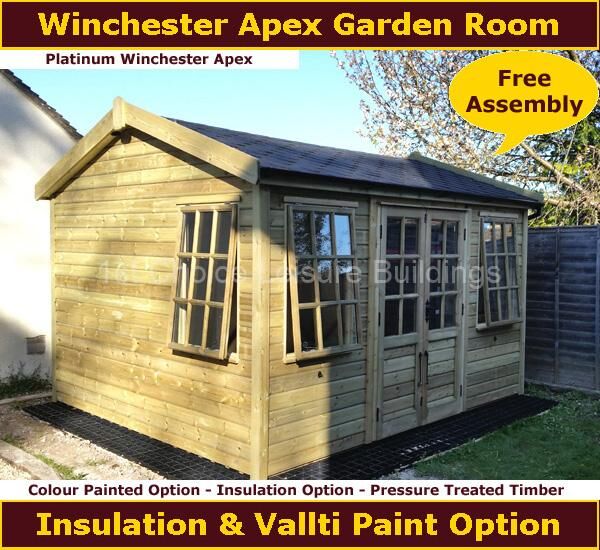

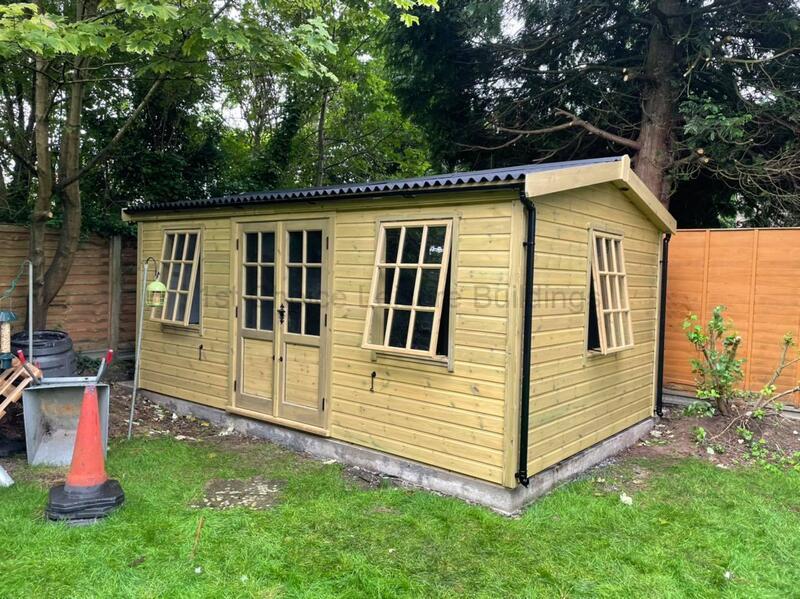

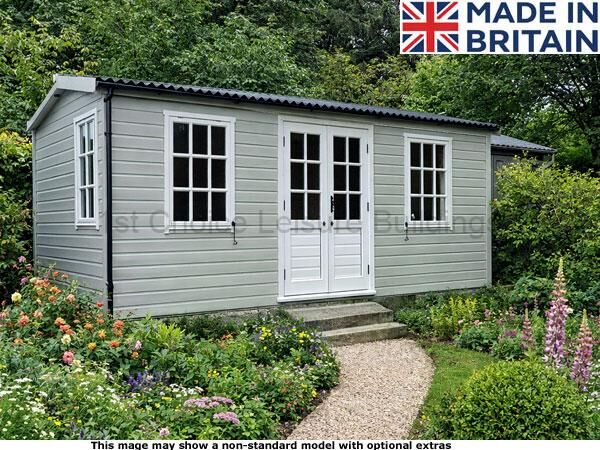

These photos show just a few examples of these superb Platinum Winchester Apex Garden Studio Summerhouses. All are made bespoke in size to suit your needs. Toughened glass with option for coloured paint finish and insulation. Installed free of charge as standard. These buildings are so good you should really visit our showrooms and see them in ‘real life’. You won’t regret it.
Take a look in our photo galley to see many more images of these buildings as well as the options available and some of the bespoke summer houses made.
1st Choice Show Rooms are near Woking, Ripley & Guildford in Surrey & Showcase Their Very High Quality Buildings
