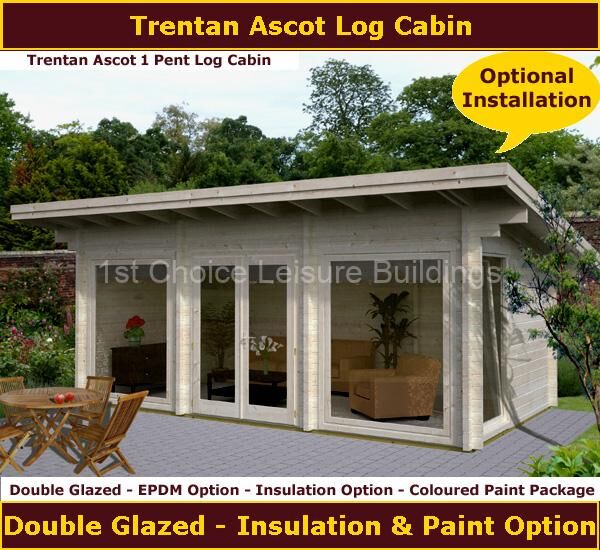

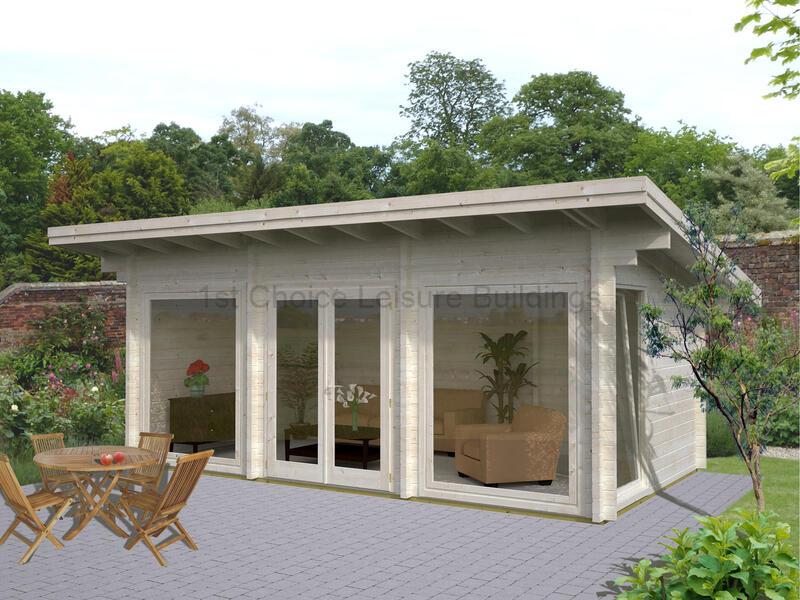

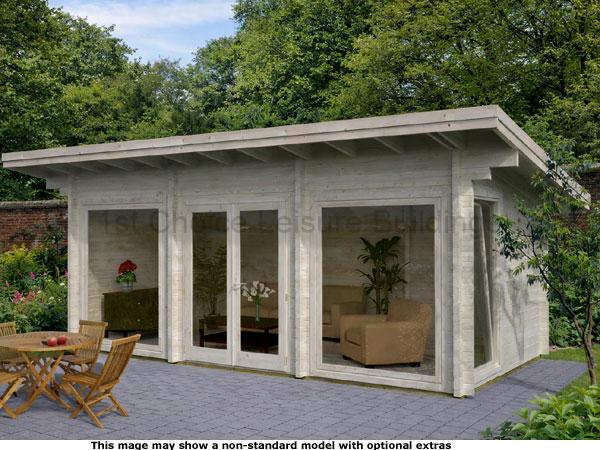

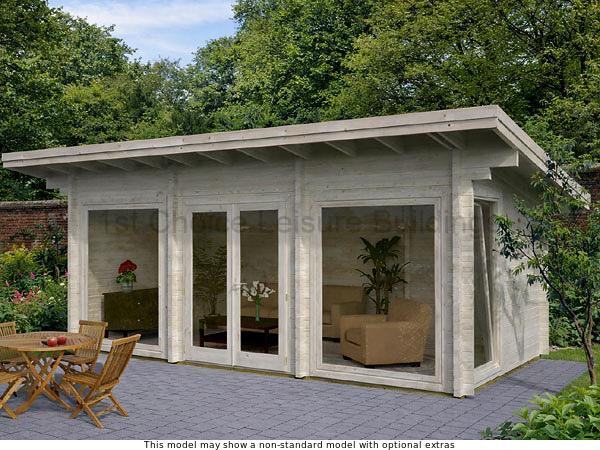

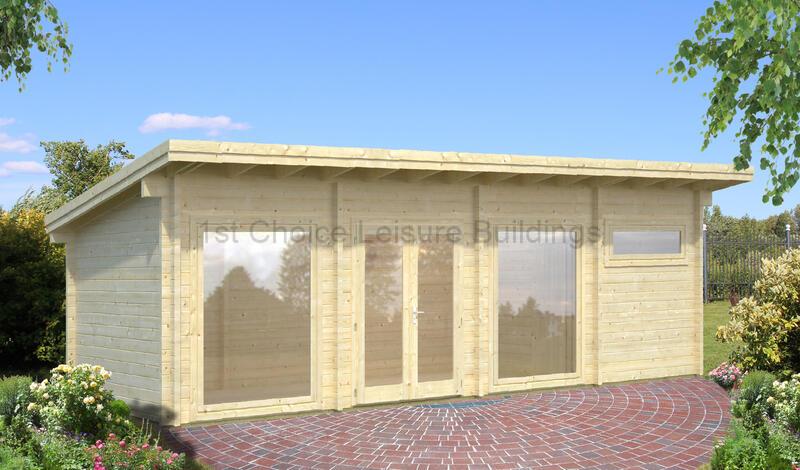

Ascot Pent Cabin
Customise Options
Size: | The Ascot ‘2’ multi-room log cabin is 8.4m x 3.2m. The lugs extend 100mm on each corner making the overall outer measurement of the shell of the building 200mm smaller at 8.2m x 3.0m. Approximate clear internal size will be approx 8m x 2.8m Please check with us if internal size is crucial The Ascot ‘1’ multi-room log cabin is 6.4m x 3.6m. The lugs extend 100mm on each corner making the overall outer measurement of the shell of the building 200mm smaller at 6.2m x 3.4m. Approximate clear internal size will be approx 6m x 3.2m Please check with us if internal size is crucial Pent, sloping roof style. |
Cladding: | The log profile has designed wind-tight connections to ensure a superior resistance against wind. This is 70mm thick standard interlocking logs and cut from a top-thin grade of Nordic Timber and this ensures the maximum stability and longevity of the timber. Untreated. Nordic timber from sustainable sources which has been kiln dried. Naturally this costs significantly more but we will not cut costs in this area and risk the quality of your building in search of a quick profit. |
Floors: | The log cabin floors are 28mm thick T&G untreated boards. No chipboard, OSB or other cheap sheet materials used on the floor, unlike some other log cabin UK suppliers. The sturdy floor joists are normally spaced no more than 650mm apart. All floor joists are pressure treated for long life as standard. |
Roofs: | 18mm thick T&G boards used on the roof sections supported by strong roof beams. Roof beams meet EN 388 stringent standards. Untreated. Roofing felt included as standard with option for EPDM felting system. 128mm overhang on sides and rear. On the front there is 79mm roof overhang. |
Doors: | Joinery quality double glazed contemporary style double doors 148cm wide x 201cm high – approx sizes. Easy adjust hinges complete with gasket seals, fitted silver finish door handles, cylinder lock and two unique keys. Low doors sills giving you easier access into your log cabin. Supplied untreated. Beware of doors with single glazing or excessively high door sills. |
Partition: | An internal partition included as standard on the Ascot ‘2’ model (None on the slightly smaller Ascot ‘1’) giving you two distinct areas within this multi room log cabin combo building. An internal single door included for access. Untreated. Kiln dried timber from sustainable sources. |
Windows: | Ascot 1: Contemporary style joinery quality windows. Included as standard are two large contemporary windows which are 143 x 194cm and one opening window 90cm x 196cm. Ascot 2: includes three contemporary style windows – 2 of which are 143 x 194cm and one at 42 x 143cm. All windows supplied untreated as standard. Toughened double glazed as standard NOT single glazed. |
Lower Walls: | Height: 236cm – on these Ascot garden cabins. |
Higher Wall Height: | 3.017m on the Ascot ‘1’ and 2.99m on the Ascot ‘2’ |
Storm Protection | Provided as standard are either ‘Wood Storm Protectors’ or threaded rods. This helps to ensure that the wall planks on your log cabin will remain tight together depending on the weather. |
Fixings: | All required fixings (screws, nails etc) are included. |
Treatment: | All garden cabins are supplied untreated. |
Installation: | Supplied in kit form for self erection. Option for assembly through a third party if required. If being built you would require a concrete base or solid and level paving slab base. Optionally, we have an many extra services to help you in some areas. These log cabins are assembled by interlocking the panels for ease of taking it down again if you decide to move. |
Delivery: | All buildings are delivered and HIABed off the lorry for you free of charge throughout central & Southern England. Deliveries to Scotland would cost £150 extra. Deliveries to Cornwall & Devon, South & West Wales and Northern England would cost an extra £60. |
Insulation | The cabins are supplied with chunky timber walls (good U-values) and double glazing as standard and you can ensure that they are comfortable year-round with the addition of our insulated floor and roof upgrade. We use 50mm PIR Celotex / Kingspan in the roof and cover this with a structural grade 18mm OSB roof deck atop-thin before fitting your specified roofing material. We will use 25mm PIR Celotex / Kingspan in the floor. The fitment of insulation will not affect the internal headroom in any way and prices shown will include for fitting when our teams install your cabin. |
Optional Extras. | Extra doors and windows, assembly of log cabins, timber bases – Please Ask |
