Ascot Pent Cabin

Wooden Floor Included No OSB - Double Glazed - Installation Service - Surrey Showroom - Site Surveys
how much value does a log cabin add to your home


See our customer reviews on ★ Trustpilot & WhiteSpark Feedback

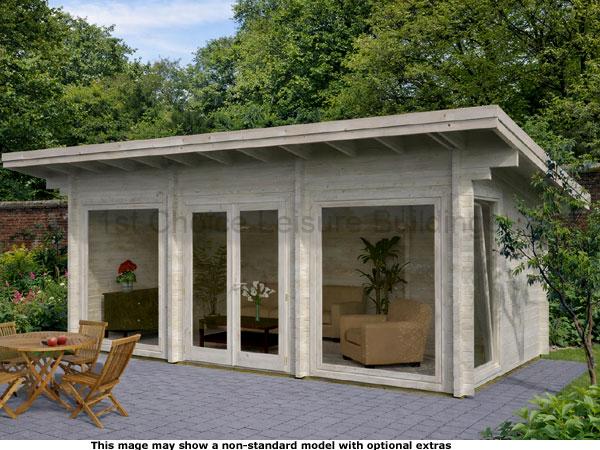

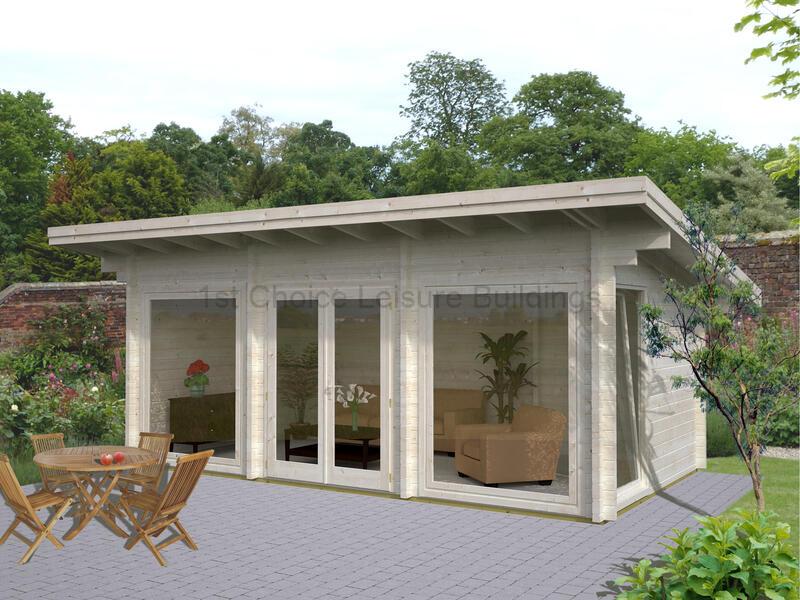

Ascot Pent Cabin

Customise Options

  • Total

* Please ensure you have complete all required options before proceeding.
Delivery Area Map
Delivery Costs
Optional Assembly Service
Green Areas - Delivery Included (MAINLAND ONLY)
Yellow Areas - £100
Blue Areas - £150
Red Areas - Sorry Unable to Deliver
Click Here For Delivery Time and Delivery Restrictions
See our customer reviews on Trustpilot & WhiteSpark Feedback

Trentan Ascot Cabins

When buying a cabin for the garden, it seems very straightforward to – click on the ‘web’, find the building in the size you want and then search for the best price. ‘Piece of Cake YES?

Well, not really, as there are so many different buildings available from the ‘cheap and possibly nasty’ right up to ones which would feel at home in a posh country home. To ensure you make the right decision, you need to do your homework to make the right choice and buy the right one for YOUR needs.

Always, where ever possible try to see your proposed new building before buying. This way you can ensure the quality of the building will meet your expectation. There’s no substitute for viewing these buildings ‘in the flesh’ so you can see the attention to detail given.

Don’t Buy On Price Alone

When choosing a new cabin for your garden you need to check out thoroughly the specifications of it. Examine the very high specifications below to ensure any prospective purchase meets the very high standards of the Trentan range of buildings. These buildings are exceptional value for money but no corners are cut in production. These Trentan units are NEVER made down to a price so be very wary of other products.

Examine The Quality

To be sure of the quality it’s great advice to view beforehand. You can then be the judge and decide whether the price is worth paying. Can that building you are looking at on the ‘web’ be viewed beforehand? And if not – WHY not?

All Year Round Use

All our Trentan buildings have double glazed windows as standard. Besides being warmer they add a higher level of security. And if you would like to benefit from all year round use – i.e. warm in the winter and cooler in the summer – we have options to help in this respect. Please chat with our friendly advisors who can explain your options.

Types and Styles of Cabins and Choosing the Right One

When buying a log cabin you must buy one which will suit you and your garden so rather than compromising we offer a very large range of styles which should suit all situations. Examine our range and see which ones will meet your precise needs.

Assembly Service

Besides the great quality of these buildings, we can arrange a fitting service for you. And besides that, we can also arrange to build a base, have your building painted and even add electrics. These services add up to their overall value of them. And it’s always worth checking out customer’s feedback to see what they say.

Floor Plan

Sizes 6.2m x 3.4m and 8.2m x 3.0m

Trentan Ascot

The Ascot is a new Cabin in the Trentan range. Full details will be added in the next few weeks. In the mean time please contact us directly for prices and specifications.
Then how about our insulation package? This ideal solution & enables you to use your cabin all year round. More details on this page
Prices in order form above or all to check out costs on (01483) 237550.
How About Adding Some Colour To Your Cabin? Personalise your building in a range of colours and make it so special. More details about our painted buildings on this page.
Click for Colour Chart Price quoted above in order form is sufficient for two coats of stain onto the assembled panels. Natural features of the wood such as grain, knows and fixings may still be visible
Click on map to see delivery postcodes.
Don’t Buy On Price Alone! – These buildings are exceptional value for money but no corners are cut in production. These Trentan cabins are NEVER made down to a price so be very wary of other products which seem especially cheap!.
Double Glazed Doors & Windows as Standard – Wooden Floor Included – 18mm Thick Long Lasting T&G Boards. Proper Timber – Not INFERIOR OSB – Assembly and Base Building Service
Humber & Trentan log cabins with Colour Paint Finish Option and make your new Painted Log Cabins special.
Royal treatment chart available for Royal Garden Rooms - 1st Choice Leisure Buildings
Royal treatment chart available for Royal Garden Rooms - 1st Choice Leisure Buildings
Royal treatment chart available for Royal Garden Rooms - 1st Choice Leisure Buildings
Royal treatment chart available for Royal Garden Rooms - 1st Choice Leisure Buildings
Please note that all colour shown are indicative only and will vary depending upon the light on the day the photo was taken. Additionally all screens will display the image differently. If exact colour is essential then please order a sample pot.

Size: The Ascot ‘2’ multi-room Cabin is 8.4m x 3.2m. The lugs extend 100mm on each corner making the overall outer measurement of the shell of the building 200mm smaller at 8.2m x 3.0m. Approximate clear internal size will be approx 8m x 2.8m Please check with us if internal size is crucial
The Ascot ‘1’ multi-room Cabin is 6.4m x 3.6m. The lugs extend 100mm on each corner making the overall outer measurement of the shell of the building 200mm smaller at 6.2m x 3.4m. Approximate clear internal size will be approx 6m x 3.2m Please check with us if internal size is crucial Pent, sloping roof style.
Cladding: The log profile has designed wind-tight connections to ensure a superior resistance against wind. This is 70mm thick standard interlocking logs and cut from a top-thin grade of Nordic Timber and this ensures the maximum stability and longevity of the timber. Untreated. Nordic timber from sustainable sources which has been kiln dried. Naturally this costs significantly more but we will not cut costs in this area and risk the quality of your building in search of a quick profit.
Floors: The Cabin floors are 28mm thick T&G untreated boards. No chipboard, OSB or other cheap sheet materials used on the floor, unlike some other Cabin UK suppliers. The sturdy floor joists are normally spaced no more than 650mm apart. All floor joists are pressure treated for long life as standard.
Roofs: 18mm thick T&G boards used on the roof sections supported by strong roof beams. Roof beams meet EN 388 stringent standards. Untreated. Roofing felt included as standard with option for EPDM felting system. 128mm overhang on sides and rear. On the front there is 79mm roof overhang.
Doors: Joinery quality double glazed contemporary style double doors 148cm wide x 201cm high – approx sizes. Easy adjust hinges complete with gasket seals, fitted silver finish door handles, cylinder lock and two unique keys. Low doors sills giving you easier access into your Cabin. Supplied untreated. Beware of doors with single glazing or excessively high door sills.
Partition: An internal partition included as standard on the Ascot ‘2’ model (None on the slightly smaller Ascot ‘1’) giving you two distinct areas within this multi room Cabin combo building. An internal single door included for access. Untreated. Kiln dried timber from sustainable sources.
Windows: Ascot 1: Contemporary style joinery quality windows. Included as standard are two large contemporary windows which are 143 x 194cm and one opening window 90cm x 196cm. Ascot 2: includes three contemporary style windows – 2 of which are 143 x 194cm and one at 42 x 143cm. All windows supplied untreated as standard. Toughened double glazed as standard NOT single glazed.
Lower Walls: Height: 236cm – on these Ascot garden cabins.
Higher Wall Height: 3.017m on the Ascot ‘1’ and 2.99m on the Ascot ‘2’
Storm Protection Provided as standard are either ‘Wood Storm Protectors’ or threaded rods. This helps to ensure that the wall planks on your Cabin will remain tight together depending on the weather.
Fixings: All required fixings (screws, nails etc) are included.
Treatment: All garden cabins are supplied untreated.
Installation: Supplied in kit form for self erection. Option for assembly through a third party if required. If being built you would require a concrete base or solid and level paving slab base. Optionally, we have an many extra services to help you in some areas. These Cabins are assembled by interlocking the panels for ease of taking it down again if you decide to move.
Delivery: All log buildings are delivered and HIABed off the lorry This delivery cost is included in the shown price throughout central & Southern England (green areas on map). Delivery costs to Yellow and Blue areas can be seen on the order form or on delivery area page.
Insulation The cabins are supplied with chunky timber walls (good U-values) and double glazing as standard and you can ensure that they are comfortable year-round with the addition of our insulated floor and roof upgrade. We use 50mm PIR Celotex / Kingspan in the roof and cover this with a structural grade 18mm OSB roof deck atop-thin before fitting your specified roofing material. We will use 25mm PIR Celotex / Kingspan in the floor. The fitment of insulation will not affect the internal headroom in any way and prices shown will include for fitting when our teams install your cabin.
Optional Extras. Extra doors and windows, assembly of Cabins, timber bases – Please Ask
Optional Assembly Service
Green Areas - Delivery Included (MAINLAND ONLY)
Yellow Areas - £100
Red Areas - Sorry Unable to Deliver
Supplier Current Delivery Times Delivery Areas
Diamond Timber Garden Buildings Approximately 4-6 weeks Diamond Delivery Area
Sapphire Timber Garden Buildings Approximately 4-6 weeks Sapphire Delivery Area
Platinum Timber Garden Buildings Approximately 4-6 weeks or approximately 6-10 weeks if PVCu upgrade specified) Platinum Delivery Area
Royal Garden Rooms Approximately 6-10 weeks Royal Delivery Area
Humber Log Cabins Approximately 8-10 weeks for self build or approximately 10-12 weeks if installation specified Humber Delivery Area
Trentan Log Cabins Approximately 4-6 weeks for self build or approximately 6-8 weeks if installation specified. Note: add 2-4 weeks if the building is a special order item or made from 70mm logs Trentan Delivery Area
Lidget Concrete Garages Approximately 4 weeks Lidget Delivery Area
Capital Steel Buildings 10-12 weeks or + 2 weeks if delivery required on a smaller lorry Capital Delivery Area
SafeStore Gold Standard Secure Sheds Approximately 8 weeks SafeStore Delivery Area
Concrete Base Construction Approximately 6-8 weeks
Timber Base Construction Approximately 2-4 weeks
Concrete/Asbestos Building Removal Approximately 6-8 weeks
Timber Building Removal Approximately 2-4 weeks
Log Cabin Painting Approximately 3-4 weeks (subject to weather)
Electrical Works Approximately 3-4 weeks
These are estimated delivery times and presume that your base is in situ and all required admin has been completed (site survey forms returned, etc.) The quoted times cannot be guaranteed and may vary depending upon your exact location as well as the availability of staff and raw materials. The times quoted do not make allowance for any Christmas closedowns. Please check at time of ordering if timing is crucial. Please also be aware - if requesting additional services such as base construction or building removal - that these may be longer than the quoted delivery time for the building itself and this may impact the overall timeframe.


Full Price List


Product Leaflet

FAQs for Log Cabins

No results!
  • Should I view before deciding on a log cabin?
    Before purchasing a log cabin in the UK, we strongly encourage you to experience one in person. Seeing a cabin firsthand empowers you to confidently evaluate construction quality—from the roof and floor to the doors and windows.

    An in-person visit ensures you fully appreciate the layout and space, surpassing what brochures or online images can convey.

    Take the next step—visit our Surrey Showroom near Woking, Ripley, and Guildford in Surrey to explore our range of log cabins in person. See firsthand how our cabins can suit your needs. We are open seven days a week and look forward to welcoming you.

Why Choose Us

UK Manufactured


Choose garden buildings crafted with quality and care; Our Diamond, Platinum, Royal, Humber, and Sapphire buildings are proudly manufactured in the UK.

Family Icon

Family Business
Since 1979

Close to five decades of experience and dedicated service from our family-run business, established in 1979.

Bespoke Icon

Fully Bespoke
Options

Get the exact garden building you envision with our fully bespoke options: Our Diamond, Platinum, Royal, Humber and Sapphire buildings can be tailored to your specific needs and style.

We are a family business Known for Quality - Loved for Design. Our ethos is 'NEVER make down to a price'. View our customer reviews on Trustpilot ★ (176) & WhiteSpark ★ (1,371) Google. VIEW at our showroom, near Guildford, Woking and Ripley in Surrey. (NEVER just rely on a brochure or website.)
