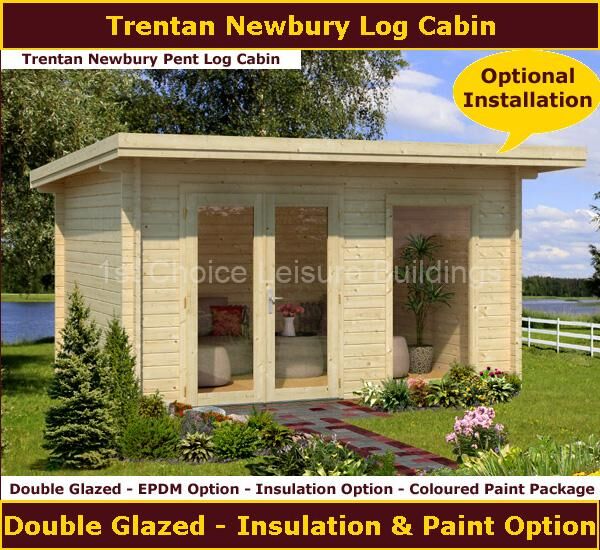

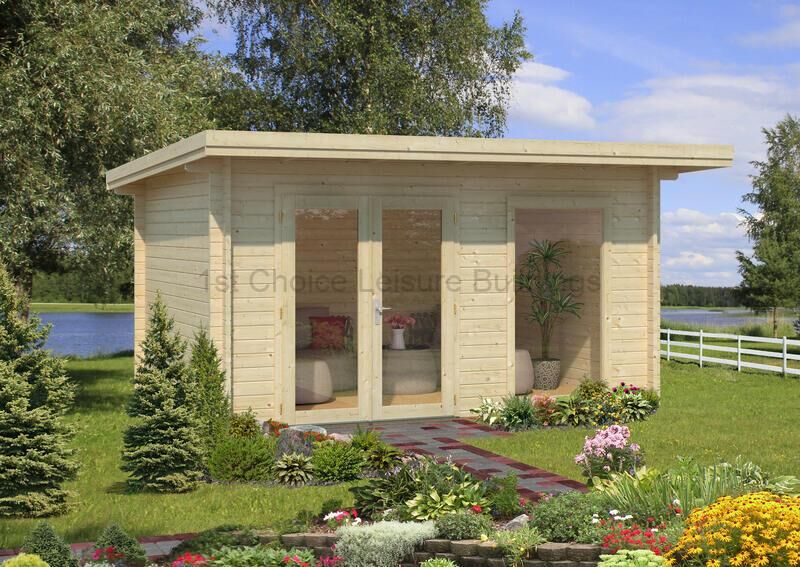

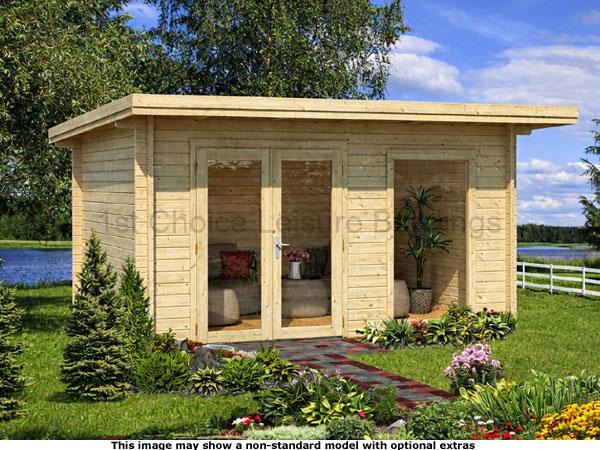

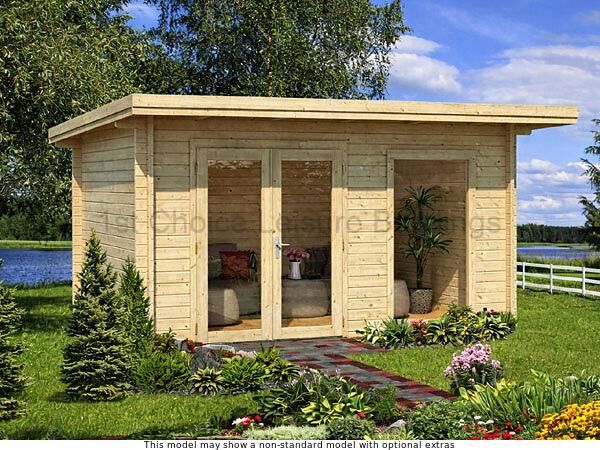

Newbury Pent Cabin
Customise Options
Size: | 4.1m x 3.0m in size. Note this is the external size of the body of the cabin. The lugs extend 100mm on each corner making the overall size (as most other companies quote) 200m larger. We mention this so you know you are comparing ‘eggs with eggs’. Approximate clear internal size will be approx 4.1m x 2.9m Please check with us if internal size is crucial. Pent Cabins or single slope Style. |
Cladding: | Standard logs are 44mm and interlock into each other. The log profile has designed wind-tight connections to ensure a superior resistance against wind. Untreated. Kiln dried timber from sustainable sources. |
Roofs: | 18mm thick T&G boards used on the roof sections supported by strong roof beams. Roof beams meet EN 388 stringent standards. Untreated. Basic Roof felt included as standard with option for EPDM felting system. 100mm (approx 4in) overhang all round. |
Floors: | 18mm thick T&G untreated boards used on these garden log cabin floors. No chipboard, OSB or other cheap sheet materials used on the floor, unlike some other suppliers. Strong floor joists which are normally spaced no more than 650mm apart. All floor joists are pressure treated for long life as standard. |
Doors: | Joinery quality double glazed toughened glass double doors 151cm wide x 183cm high – approx sizes. . Easy adjust hinges complete with gasket seals, fitted silver finish door handles, cylinder lock and two unique keys. Low doors sills giving you easier access into your garden cabin. Supplied untreated. Beware of doors with single glazing or excessively high door sills. |
Windows: | Contemporary style joinery quality window 90cm x 168cm toughened double glazed glass. Supplied untreated as standard. Double glazed as standard NOT single glazed. |
Lower Walls: | Height: 222cm – on all this Newbury log building. |
Higher Walls: | Height. 245.7cm – on this wooden cabins Importantly below 2.5m meaning these buildings can be built next to your boundary, subject to any other planning restrictions you may have) |
Storm Protection | Provided as standard are either ‘Wood Storm Protectors’ or threaded rods. This helps to ensure that the wall planks on your log cabin will remain tight together depending on the weather. |
Fixings: | All required fixings (screws, nails etc) are included. |
Treatment: | All buildings are supplied untreated. |
Fitting: | Our UK cabins are supplied in kit form for self assembly. Option for assembly through a third party if required. If being built you would require a concrete base or solid and level paving slab base. Optionally, we have an option for building a base as well as other services for you. These cabins are assembled by interlocking the panels for ease of taking it down again if you decide to move. |
Delivery: | All buildings are delivered and HIABed off the lorry for you free of charge throughout central & Southern England. Deliveries to Scotland would cost £150 extra. Deliveries to Cornwall & Devon, South & West Wales and Northern England would cost an extra £100. |
Insulation | The cabins are supplied with chunky timber walls (good U-values) and double glazing as standard and you can ensure that they are comfortable year-round with the addition of our insulated floor and roof upgrade. We use 50mm PIR Celotex / Kingspan in the roof and cover this with a structural grade 18mm OSB roof deck atop-thin before fitting your specified roofing material. We will use 25mm PIR Celotex / Kingspan in the floor. The fitment of insulation will not affect the internal headroom in any way and prices shown will include for fitting when our teams install your cabin. |
Optional Extras. | Extra doors and windows, assembly of garden cabins, timber bases – Please Ask |
