Ottershaw Corner Cabin
Customise Options

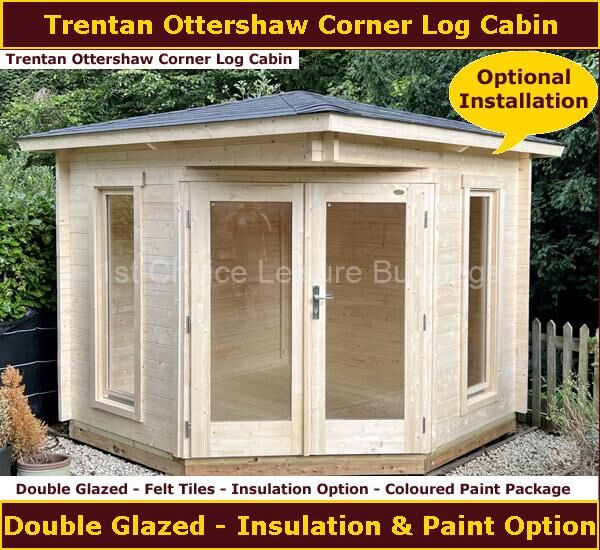

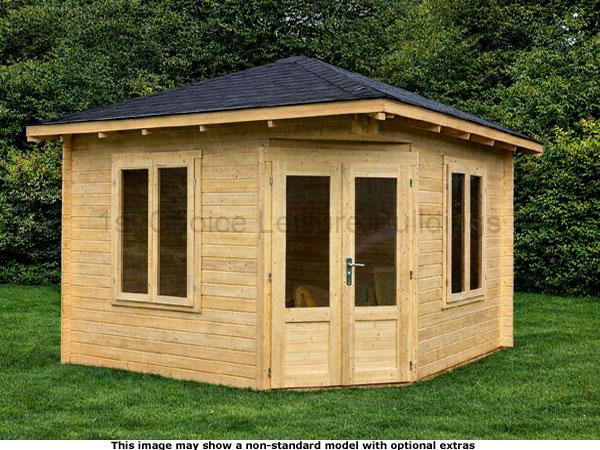

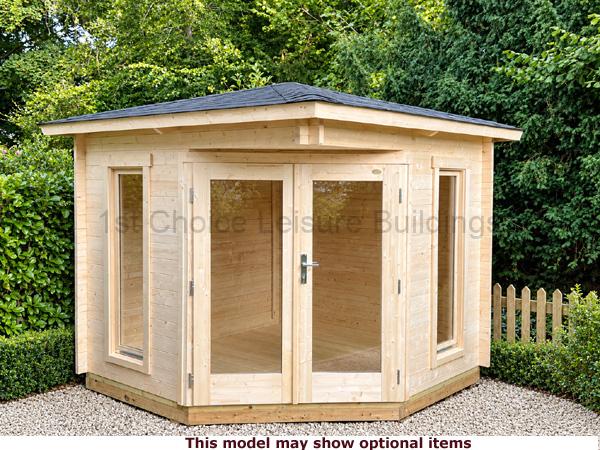

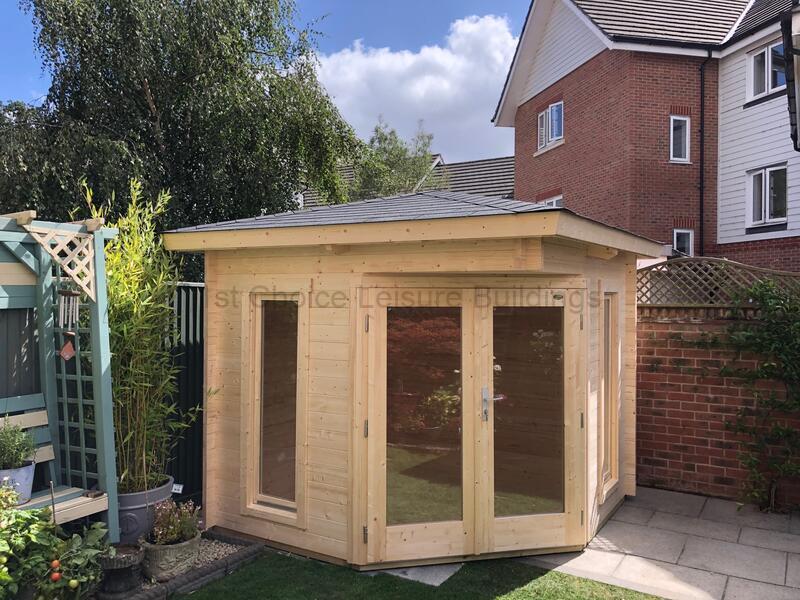

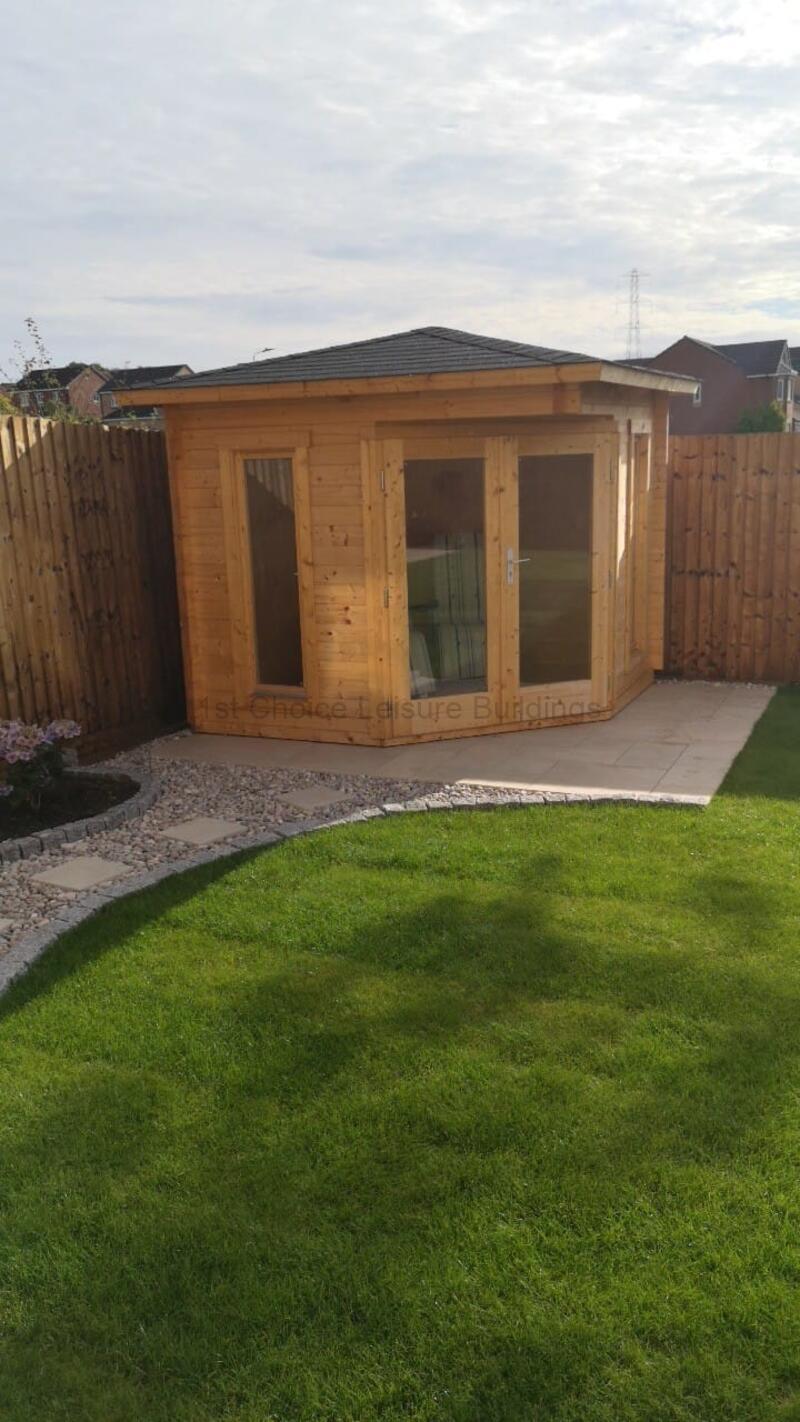

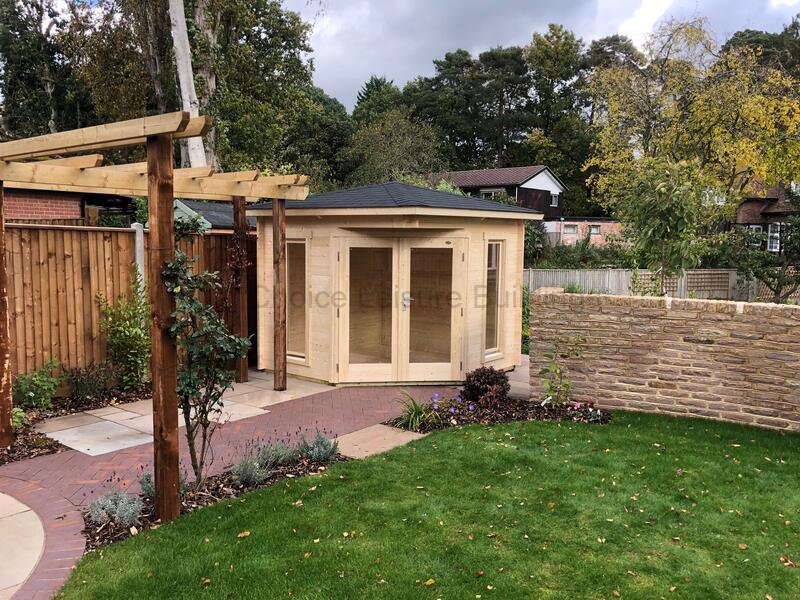

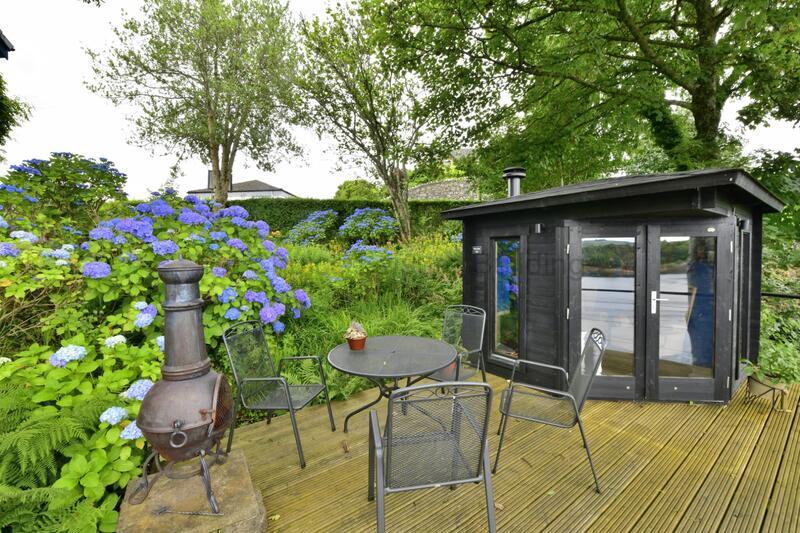

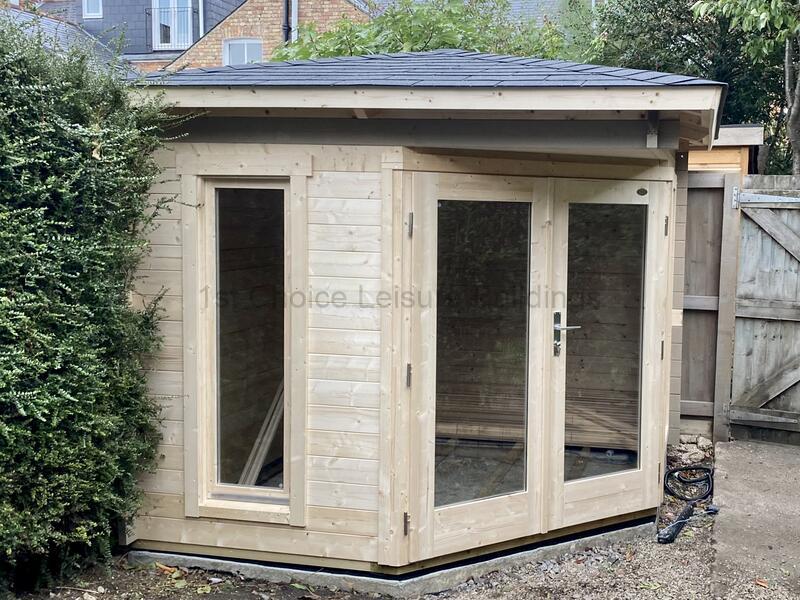

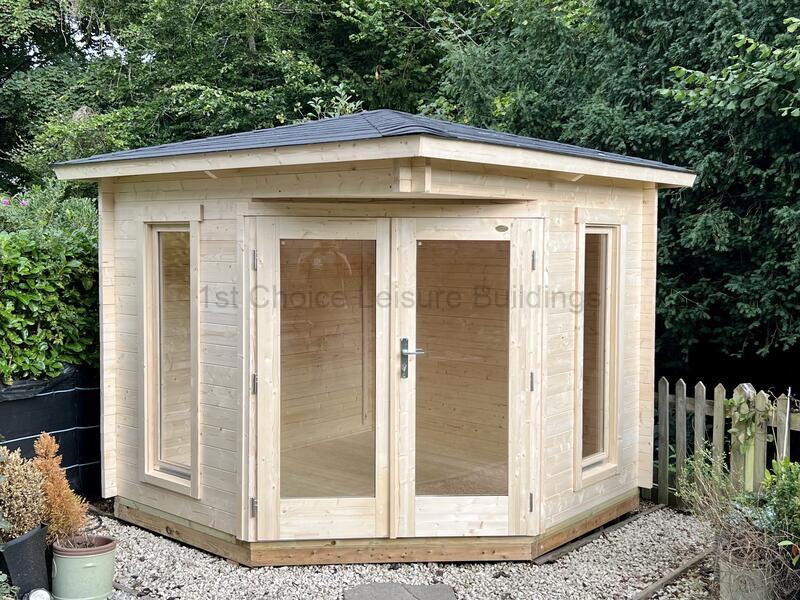

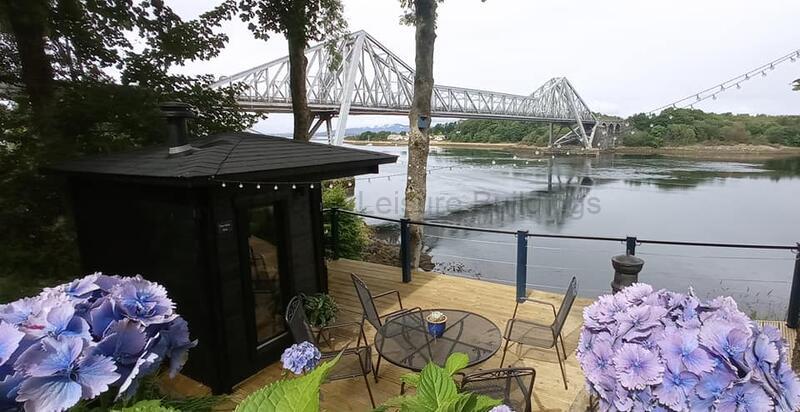

These Ottershaw Corner log cabins are a supreme answer to that corner spot in your garden. Besides that the contemporary look gives this building a stylish and modern look besides allowing light to flood into these log cabins. Imagine relaxing in this in your garden.

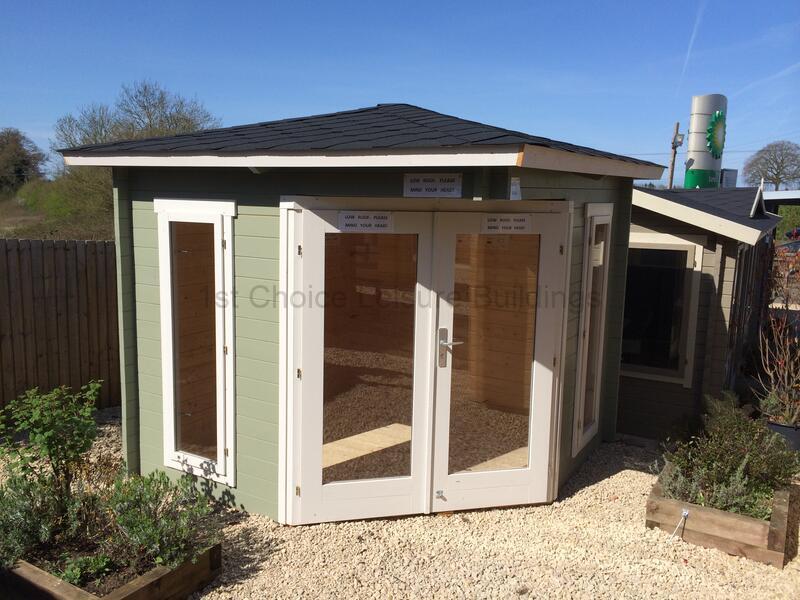

Where ever possible take a look at what you are buying. We have a range of Trentan Log Cabins on display for you to inspect, although not always this model. Don’t risk your ‘hard earned’ money on a range of log cabins you can’t see. These Nordic wood cabins are fully double glazed for comfort and under 2.5m tall for planning.
Size: | This Ottershaw corner log cabin is just under 2.4m x 2.4m (7¾ft x 7¾ft nominal). Note this is the external size of the body of the cabin. The lugs extend 100mm on each corner making the overall size (as most other companies quote) 200m larger. We mention this so you know you are comparing ‘eggs with eggs’. Approximate clear internal size will be approx 2.3m x 2.3m minus the corner bit. Please check with us if internal size is crucial. |
Cladding: | Standard logs are cut from a top-thin grade of Nordic Timber, this ensures the maximum stability and longevity of the timber, on these corner log cabins and are 40mm and interlock into each other. The log profile has designed wind-tight connections to ensure a superior resistance against wind. Untreated. Kiln dried timber from sustainable sources. |
Roofs: | 18mm thick T&G boards used on the roof sections supported by strong roof beams. Roof beams meet EN 388 stringent standards. Untreated. Supplied with felt tiles (shingles) in either red, brown or green or Polyester based felt as standard. 100mm (approx 4in) overhang all round. |
Floors: | 18mm thick T&G untreated boards used on these floors. No chipboard, OSB or other cheap sheet materials used on the floor, unlike some other log cabin UK suppliers. Floor joists are 45x45mm and are normally spaced no more than 650mm apart. All floor joists are pressure treated for long life as standard. |
Doors: | Joinery quality double glazed double doors 1494mm wide x 1736mm high (59in x 68¼in) – approx sizes. Easy adjust hinges complete with gasket seals, fitted silver finish door handles, cylinder lock and two unique keys. Low doors sills giving you easier access into your log cabin. Supplied untreated. Beware of doors with single glazing or excessively high door sills. |
Windows: | Two (2) contemporary style joinery quality inward opening windows included as standard. Size of each window is 525cm wide x 156cm high (20½in x 61¼in). Complete with easy adjust hinges, silicon gasket seals and delightful silver finish window handles. Supplied untreated as standard. Double glazed as standard NOT single glazed. |
Lower Walls: | Height: 205cm (80½n) – on all Ottershaw corner log cabin kits for sale. |
Higher Walls: | Planning friendly height. 241cm (94½in) – on all Ottershaw corner log cabins. Importantly below 2.5m meaning these log cabins can be built next to your boundary, subject to any other planning restrictions you may have) |
Storm Protection | Provided as standard are either ‘Wood Storm Protectors’ or threaded rods. This helps to ensure that the wall planks on your log cabin will remain tight together depending on the weather. |
Fixings: | All required fixings (screws, nails etc) are included. |
Treatment: | All log cabins are supplied untreated. |
Assembly: | Log cabins are supplied in kit form for self assembly. Option for assembly through a third party if required. If being built you would require a concrete base or solid and level paving slab base. Optionally, we have an option for building a base for you. These log cabins are assembled by interlocking the panels for ease of taking it down again if you decide to move. |
Delivery: | All log cabins are delivered and HIABed off the lorry for you free of charge throughout central & Southern England. Deliveries to Scotland would cost £150 extra. Deliveries to Cornwall & Devon, South & West Wales and Northern England would cost an extra £60. |
Insulation | The cabins are supplied with chunky timber walls (good U-values) and double glazing as standard and you can ensure that they are comfortable year-round with the addition of our insulated floor and roof upgrade. We use 50mm PIR Celotex / Kingspan in the roof and cover this with a structural grade 18mm OSB roof deck atop-thin before fitting your specified roofing material. We will use 25mm PIR Celotex / Kingspan in the floor. The fitment of insulation will not affect the internal headroom in any way and prices shown will include for fitting when our teams install your cabin. |
Optional Extras. | Extra doors and windows, assembly, timber bases – Please Ask |
