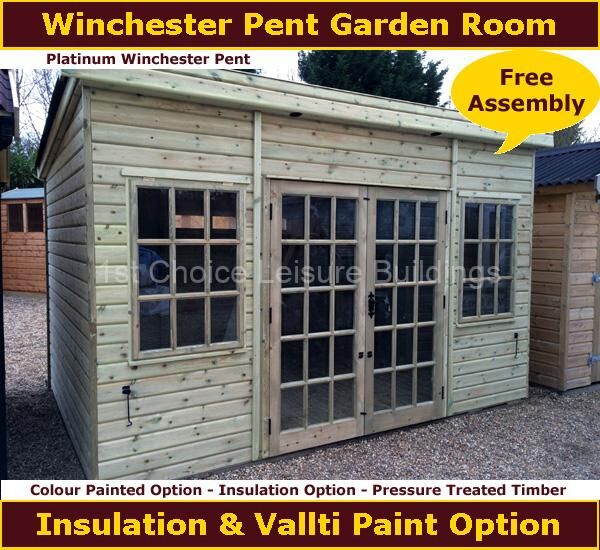

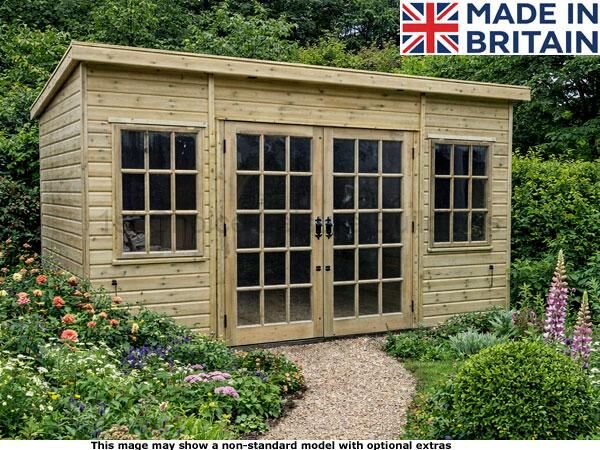

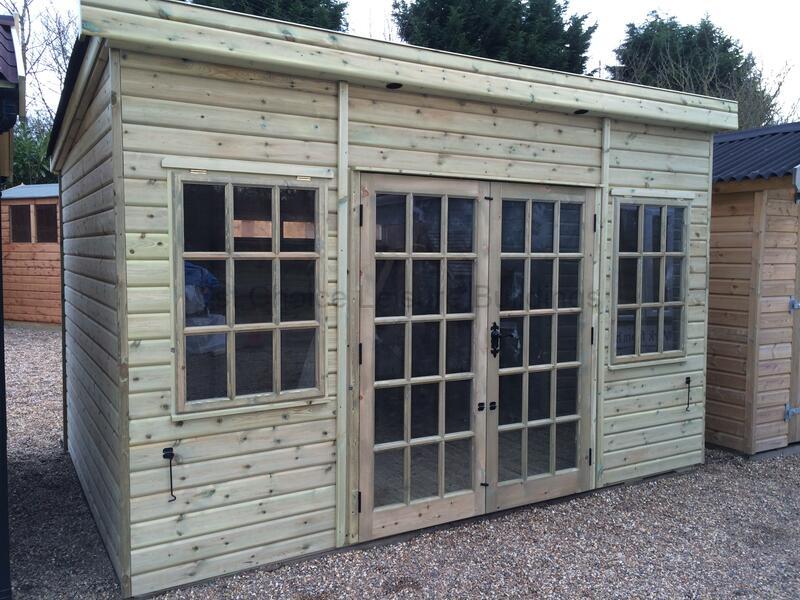

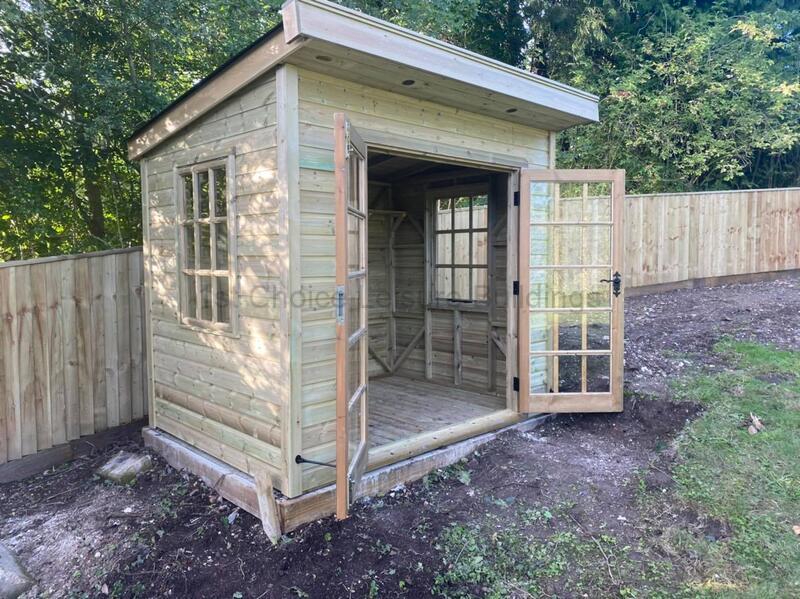

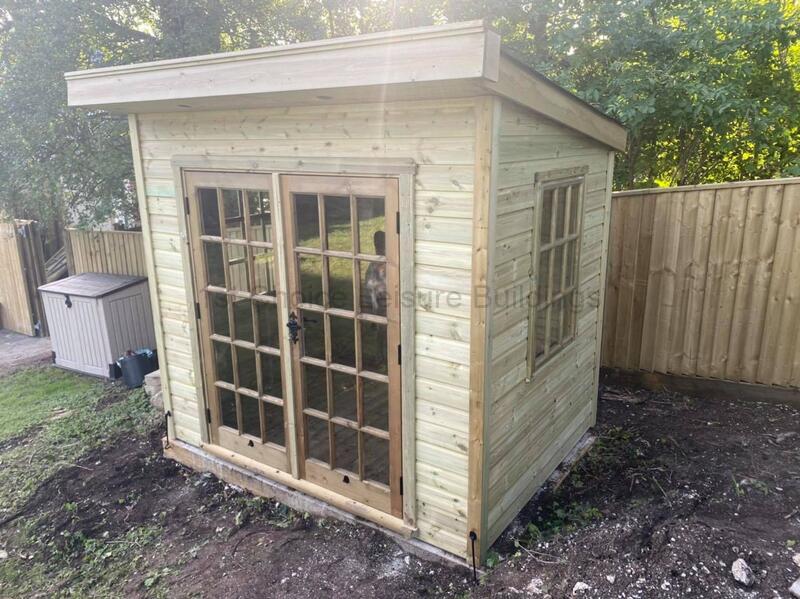

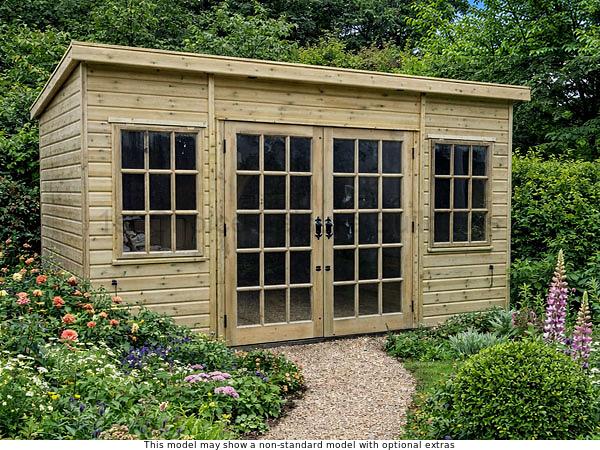

Platinum Winchester Pent
Customise Options
Sizes: | These Winchester Pent Georgian Summerhouse or garden studios are available in sizes from 8×6 right up to 30×12 and larger. Choose from widths 6′, 7′, 8′, 9′, 10′, 11 & 12′ but other sizes of garden studios can be made so please ask if you need any other size, even odd sizes. |
Cladding: | Normally clad in T&G Shiplap, with standard thickness being 19mm nominal (15mm finished size) which is thicker than most other. Also available in 20mm T&G Loglap cladding and 23mm to 6mm Rebated & Lined Weatherboard on these sectional buildings. Redwood deal not cheap inferior whitewood. Tanalised pressure treated as standard with 15 year minimum expected life against rotting. Screwed together construction. |
Framing: | Standard framework on these summerhouses is 70 x 33mm thick (3″ x 1½” nominal) on all buildings. Effectively thicker in corners when erected. All framework screwed together in corners, not just nailed together. Diagonal bracing in all corners for long term stability. Fully pressure treated. |
Designs: | These Platinum Garden Studios are made with a pent or mono-pitch roof. Sometimes known as a flat roof, lean-to roof or single sloped roof. If you require an apex roof (gable roof) then take a look on this page or a transverse roof take a look on this page. |
Roofs: | These Pent summer houses roofs are made from solid 16mm (12mm finished thickness) T&G timber and then covered with heavy duty Onduline roof sheets. (No chipboard, sterling board, OSB board or sheet materials are used – as these are unsuitable for outdoor use.) Vents added in the soffits to allow for free flow of air (in the underside of the roof). Option for gutters and downpipes to conserve that precious water for your garden. Option for green felt, felt tiles or Onduvilla tiles. |
Floors: | The extra strong heavy duty floor on these pent Garden Studios are made from 19mm (15mm finished size) T&G timber boards set on 50 x 50mm (2×2 nominal) pressure impregnated joists for long life. |
Doors: | Georgian Double doors, joinery quality, and 44mm thick as standard. Black Butt hinges and a 5 Lever mortice lock & antique handle as standard Beware of garden buildings doors with NO bracing or joints. |
Windows: | Georgian 9 pane opening windows on these buildings. There are three (3) Georgian windows as standard. Normally top-thinhung with 2 hinges and one casement stay. TOUGHENED glass is used in these superb Garden Studios (No cheap scratchable plastic or perspex). Option for extra Georgian windows to meet your needs. |
Corner Strips: | These Platinum Winchester Pent Garden Studios are finished off with ‘Wrap Around’ corner strips. These give extra protection to the end grain of the timber and for a stylish finish. This is just one of the many small features which goes into these summer buildings but shows that a lot of thought has gone into these superb units. |
Height: | Internal lower wall is a generous 1.95m (77in) eaves on all Garden Studios. Normal Internal higher wall height is normally 2.2m (86 inches) which is less than 2.5m if you have planning issues. Please check before ordering if heights are crucial. (Internal heights quoted NOT external which most firms quote) |
Treatment: | All these Pent Mono-pitch Summer Houses walls, framing and floors come complete with tanalised pressure treated timber as standard. 15 years ‘expected life’ against rotting. Although the timber is protected against rotting it’s important that you apply a coat of waterproof treatment within 3 months of delivery to ensure the fullest life for your new building. |
Nails: | All fittings and nails are all rust resistant (galvanised) to ensure long lasting good appearance to your garden building. NO staples are used as these are not suitable for a quality garden building. |
Insulation: | These summerhouses can be optional lined and insulated for all year round use. Cooler in Summer. Warmer in Winter. |
Erection: | All our Georgian Pent (single slope) Garden Studios are assembled FREE of charge. All you need to do is to provide a solid level concrete or paving slab base or timber decked area, or maybe it could be built on your timber bearers. There is also an option for building a timber raft for you. This summerhouse is assembled using screws for ease of taking them down again if you decide to move. |
Optional Extras: | These include double or wider doors, extra windows, extra height, lining and insulation, partitions, gutters and downpipes etc – please ask. |
Delivery: | Free delivery is included for most of England (mainland). Outside of this free delivery area it is often possible to deliver and erect for a small surcharge. |
Specials: | Any size or design of pent summerhouse to suit and can be made with extra doors, windows or partitions. If not sure please contact us for your personal quote for your precise needs. |
Viewing: | Option to view these superb summerhouses before buying so you can inspect at first hand the high quality of the materials used and the construction methods. Show site near Guildford and Farnham in Surrey (not far from the M25 Junction 10) Check web site for current models on display |
Support UK: | This Platinum Winchester Georgian Pent and Mono-Pitch Summerhouse is made in the UK by experienced craftsmen. Back our British workers. |
Sizes: | Unless specified as finished size then studio sizes quoted are before machining which reduces the size quoted by about 3mm. BEWARE. Many Summer house manufacturers quote BEFORE machining sizes making them APPEAR larger – don’t be fooled. Prices for following sizes are usually online. If not please ask. Also, other sizes by request. |
