Trentan Alfold Double Glazed Apex Log Cabin with Shed

Name: Is The Alfold Log Cabin Shed Combination The One For You?
SKU: alfold-log-cabin-shed-combination
Availability: InStock

Trentan Alfold Apex Multi Room Garden Cabin Shed - Log Cabin - 1st Choice Leisure Buildings

Trentan Garden Cabin Specifications - Log Cabin - 1st Choice Leisure Buildings

More Log Cabin Photos

Downloads

Full Price List Leaflet PDF

TOTAL £0.00

INCLUDING VAT

Optional Assembly

VISIT OUR DISPLAY SITES

Free Impartial Advice

DOUBLE GLAZED AS STANDARD

Base Price
Total
£ 0.00
Select Size To Get Price*
If you like this model but would like a different size then use the Woodpro online configurator and design your own cabin to suit you. Whatever you can think of is possible. Or contact us..
Double Glazed Doors
Double Glazed Windows
Wooden Floor Included
Type Of Roof Covering
Insulated Roof Kit
Insulated Roof Kit
Cabin Assembly Available (Within 50 Miles Of Guildford)
Type Of Base
Access Restrictions
Delivery

Subtotal
Options
Total

* Please ensure you have complete all required options before proceeding.

Why Choose Me And Delivery Area Map

Click For Interactive Delivery Map Fpr Trentan Buildings

Optional Assembly Service

Green Areas - FREE Delivery

Yellow Areas - £100

Blue Areas - £150

Red Areas - Sorry Unable to Deliver

Current Delivery Times:- This is variable depending on model but this is currently in the 12-18 week window unless we have stock of the particular cabin in question on the ground here in the UK. If you are looking for an early delivery please call on (0800) 999 6995 and we will check the current stock and advise. We will always do our best to meet your needs. Don’t be misled by other companies quoting 10 days delivery, 15 days delivery, 20 days delivery etc. When days are mentioned in deliveries they usually relate to ‘working days’. This means 10 days = two weeks, 15 days = three weeks and 20 days – four weeks not quite the same as you might have expected.

Features

Size is Spacious 5.0m x 3.0m (16¾ft x 10ft nominal)
2.511m Apex. Good 2.0m Eaves Height
Double Opening Window Included
Felt Tiles in Choice of Colours Included
Joinery Made Glazed Door & Shed Door
Double Glazed Windows (not single panes)
Slow Growing Stable Nordic Timber
Integral Shed with Separate Door Supplied
Proper Glass Throughout (NOT Perspex)
Solid 44mm Interlocking Timber for Added Strength
Optional Installation of Log Cabins
Fast Log Cabin Delivery Times, Approx 2-4 Weeks
Made to a high standard not down to a price.
Timber From Sustainable Sources, Naturally
Similar Log Cabins On Display Near Guildford & Farnham

Specification

Size:	This log cabin with internal shed annexe is 5.0m x 3.0m (16¾ft x 10ft nominal). Apex, gable or ‘A’ Shaped roofed Log Cabin Style. Note this is the external size of the body of the cabin. The lugs extend 100mm on each corner making the overall size (as most other companies quote) 200m larger. We mention this so you know you are comparing ‘eggs with eggs’. Approximate clear internal size will be approx 4.9m x 2.9m. Please check with us if internal size is crucial. The shed section is 291cm x 136cm and has a single solid door to access it.
Cladding:	The standard 40mm log profile has designed wind-tight connections to ensure a superior resistance against wind and are 70mm thick and slot into each other. Untreated. Kiln dried timber from sustainable sources. The highest grade of Spruce is specified which is only sourced from the coldest parts of the Northern Nordic region to ensure the maximum stability and longevity of the timber. Naturally, this costs significantly more but we will not cut costs in this area and risk the quality of your building in search of a quick profit.
Doors:	Joinery quality double glazed double doors 1580mm wide x 1865mm high (62in x 73½in) into main part of garden cabin. Easy adjust hinges complete with gasket seals, fitted silver finish door handles, cylinder lock and two unique keys. Low doors sills giving you easier access into your log cabin. Supplied untreated. Beware of doors with single glazing or excessively high door sills.
Partition:	Internal partition included as standard giving you two distinct areas within this log cabin with rear storage. Untreated. Kiln dried timber from sustainable sources. The annexe section is 291cm x 136cm and has a single solid door to access it.
Rear Door:	Joinery quality single door 835mm wide x 1850mm high (32¾in x 72½in) – approx sizes for access into shed section. Easy adjust hinges complete with gasket seals, recessed door latches, highly secure Euro Cylinder barrel Type mortice lock, fitted gold finish door handles and three unique keys. Supplied untreated. This enables easy access into storage section.
Roofs:	18mm thick T&G boards used on the roof sections supported by strong roof beams. Roof beams meet EN 388 stringent standards. Untreated. Supplied with felt tiles (shingles) in either red, brown or green or Polyester based felt as standard. 100mm (approx 4in) overhang all round.
Floors:	18mm thick T&G untreated boards used on these floors. No chipboard, OSB or other cheap sheet materials used on the floor, unlike some other cabin UK suppliers. The sturdy floor joists are normally spaced no more than 650mm apart. All floor joists are pressure treated for long life as standard.
Windows:	Contemporary style joinery quality inward opening window included as standard. Size of windows are 102cm wide x 132cm high (40in x 52in). Complete with easy adjust hinges, silicon gasket seals and delightful silver finish window handles. Supplied untreated as standard. Double glazed as standard NOT single glazed.
Lower Walls:	Height: 217cm (85in) – on all Alfold cabins.
Ridge Height:	Height. 251cm – on all Alfold cabins.
Storm Protection	Provided as standard are either ‘Wood Storm Protectors’ or threaded rods. This helps to ensure that the wall planks on your log cabin will remain tight together depending on the weather.
Fixings:	All required fixings (screws, nails etc) are included.
Treatment:	All wooden cabins are supplied untreated.
Assembly:	These buildings are supplied in kit form for self assembly. Option for erection through a third party if required. If being built you would require a concrete base or solid and level paving slab base. Optionally, we have an option for building a base for you. These cabins are assembled by interlocking the panels for ease of taking it down again if you decide to move.
Delivery:	All log buildings are delivered and HIABed off the lorry for you free of charge throughout central & Southern England. Deliveries to Scotland would cost £150 extra. Deliveries to Cornwall & Devon, South & West Wales and Northern England would cost an extra £60.
Insulation	The cabins are supplied with chunky timber walls (good U-values) and double glazing as standard and you can ensure that they are comfortable year-round with the addition of our insulated floor and roof upgrade. We use 50mm PIR Celotex / Kingspan in the roof and cover this with a structural grade 18mm OSB roof deck atop before fitting your specified roofing material. We will use 25mm PIR Celotex / Kingspan in the floor. The fitment of insulation will not affect the internal headroom in any way and prices shown will include for fitting when our teams install your cabin.
Optional Extras.	Extra doors and windows, assembly of buildings, timber bases – Please Ask

Floor Plan

3.8 x 2.8m and 4.8 x 2.8m

Surrey Cabin UK Show Sites

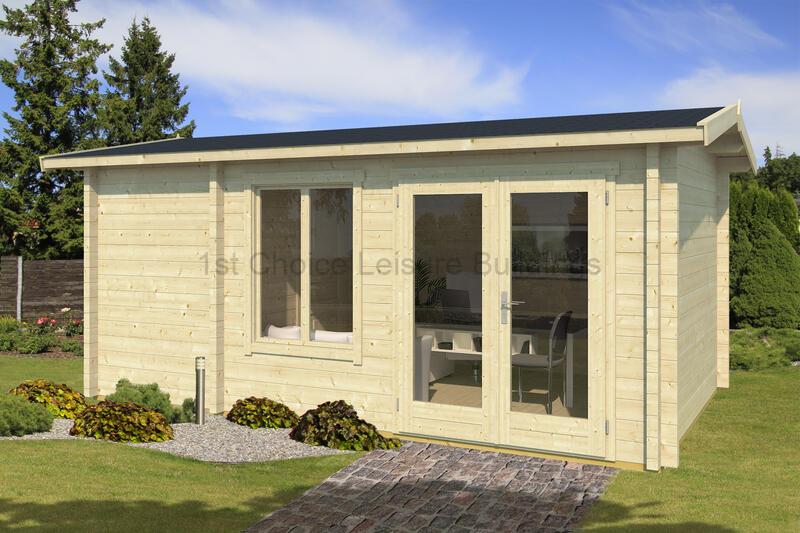

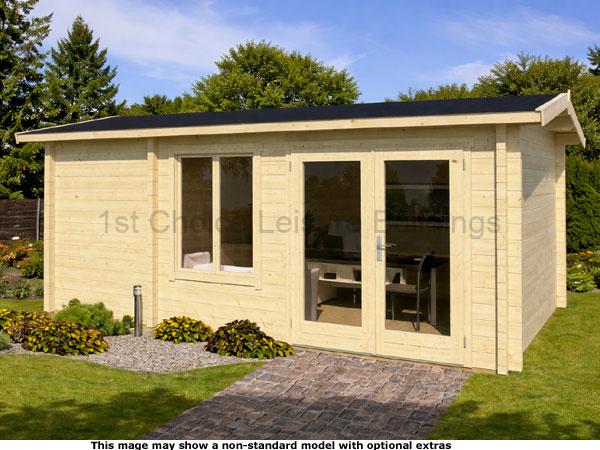

The superb design of the Trentan Alfold’ log cabin shed combination building adds a new look to the ‘norm’ with its clever and useful shed section which blends in perfectly with the log cabin making it a superb building for your garden. The single solid door to the store can be located to suit your needs and the half glazed double doors to the log cabin section are on the front long side.

It’s always a good idea when buying a log cabin to take a look beforehand. We have two display areas close to Woking, Farnham and Guildford where you can take a closer look and make sure this is the right garden cabin for you. Besides that these buildings are less than 2.5m high so are planning friendly.
